Facade & Canopy Fittings
Structural glass walls and canopies are held by point fittings. Our spiders and canopy parts are SS 316 for outdoor exposure, with SS 304 routels, fin plates and splice plates.

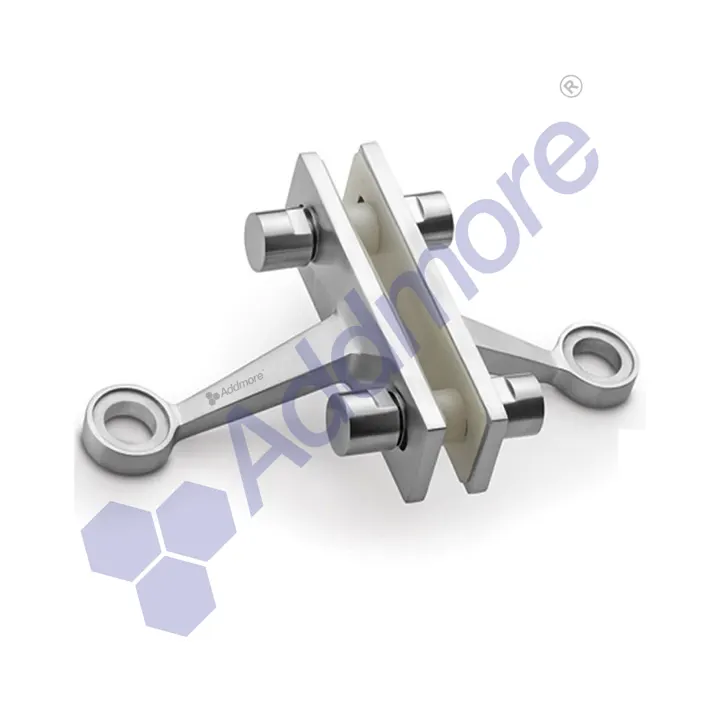

Spider Fitting, Fin Type

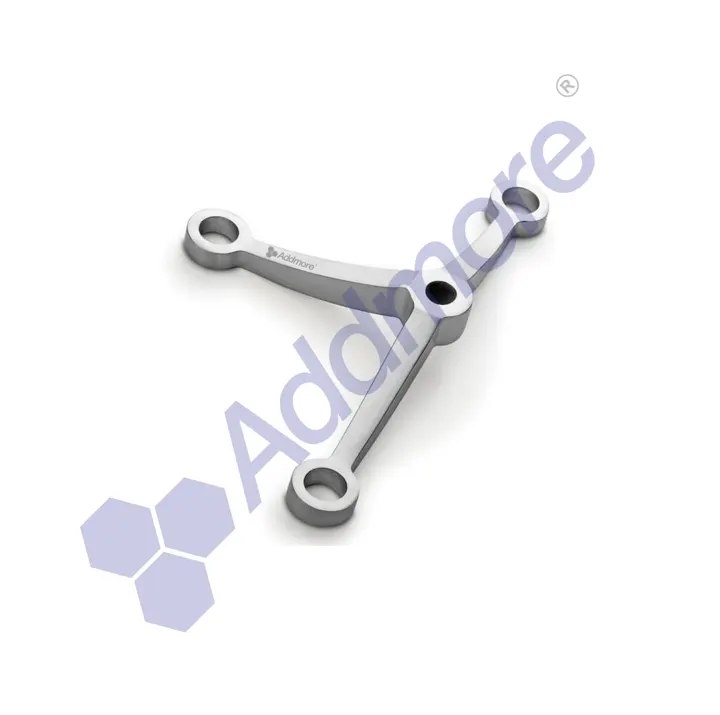

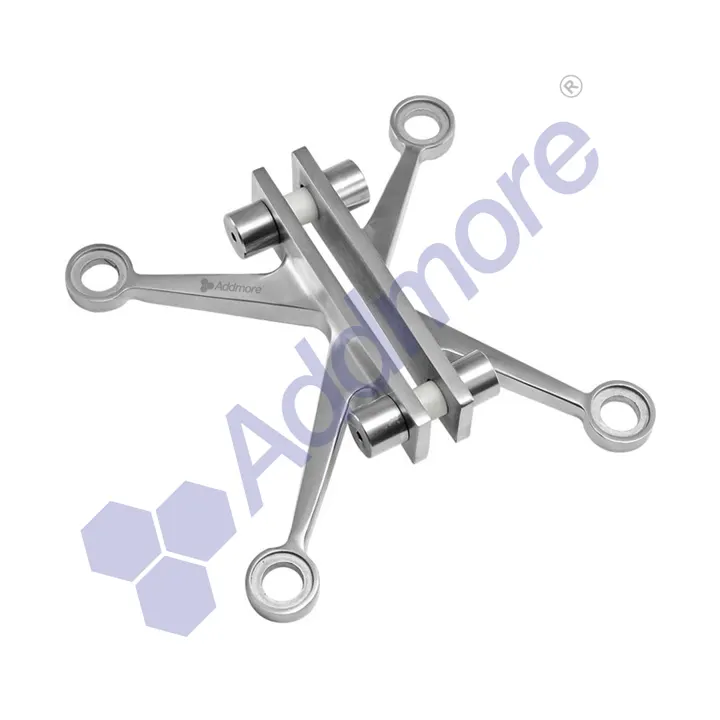

SS 3164 itemsSpider fittings carry large structural glass walls (curtain walls and facades) at the corners of each glass panel. Fin type spiders clamp onto a glass fin that acts as the support beam.
How it is used
- Glass panels are drilled at each corner for routels.
- Spiders are fixed to the glass fin or structure; routels pass through the glass and bolt to the spider arms.
- Joints between panels are sealed with structural silicone.
Where it is used
- Building facades and showroom fronts
- Atriums and double-height lobbies
- Glass skylights and canopies
How to choose
- SS 316 is used outdoors for corrosion resistance.

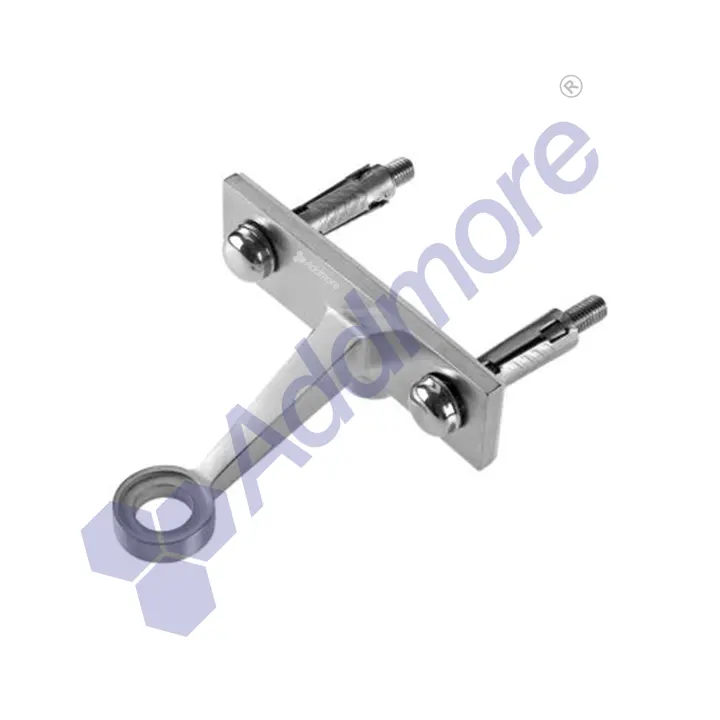

- 4-way at panel junctions, 2-way at edges, 1-way at corners, wall/ceiling types at the perimeter.

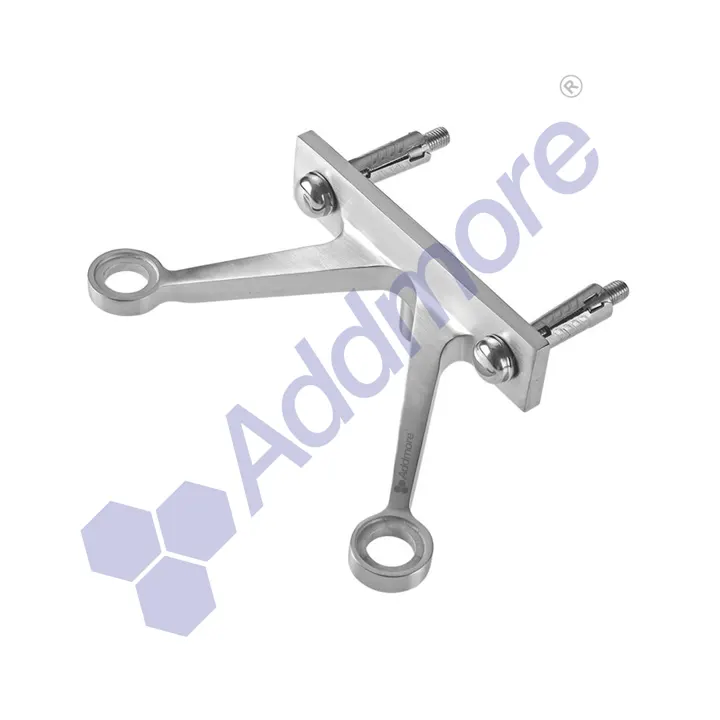

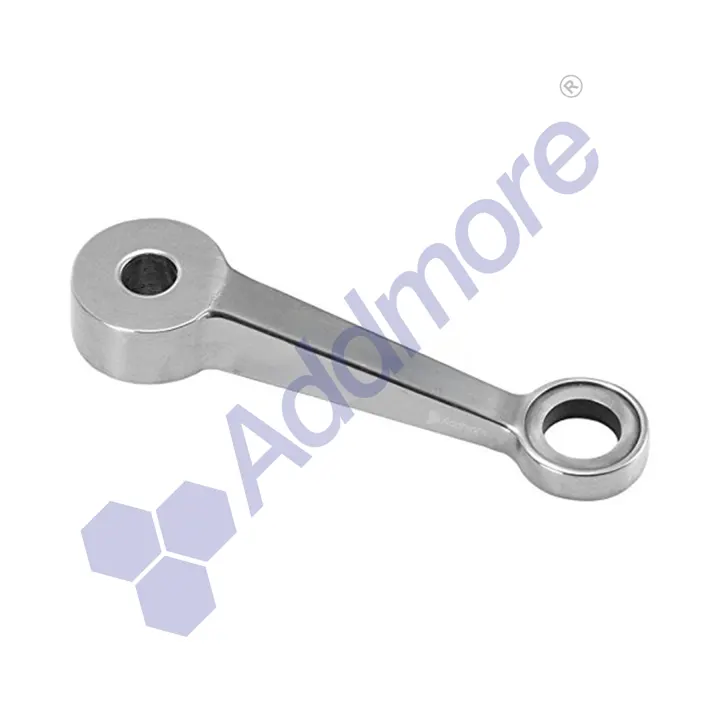

Spider Fitting, Without Fin

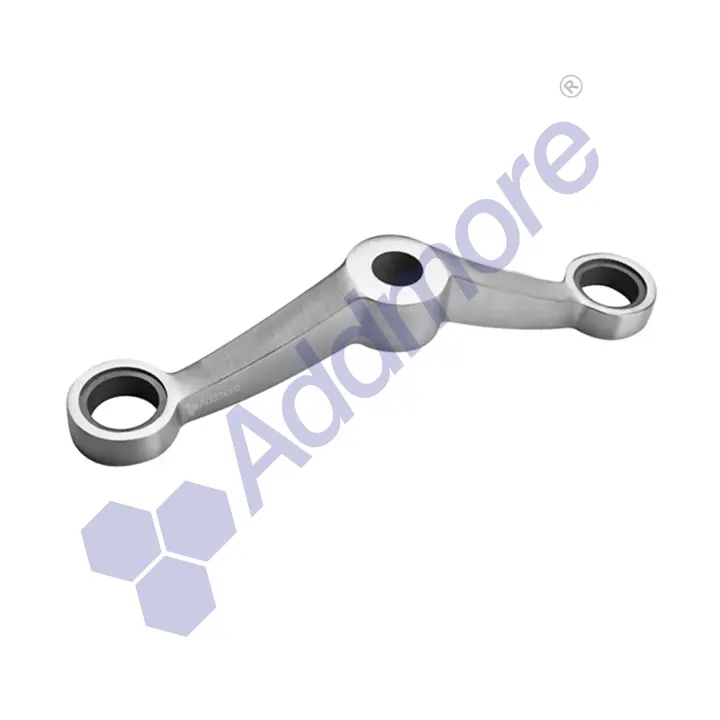

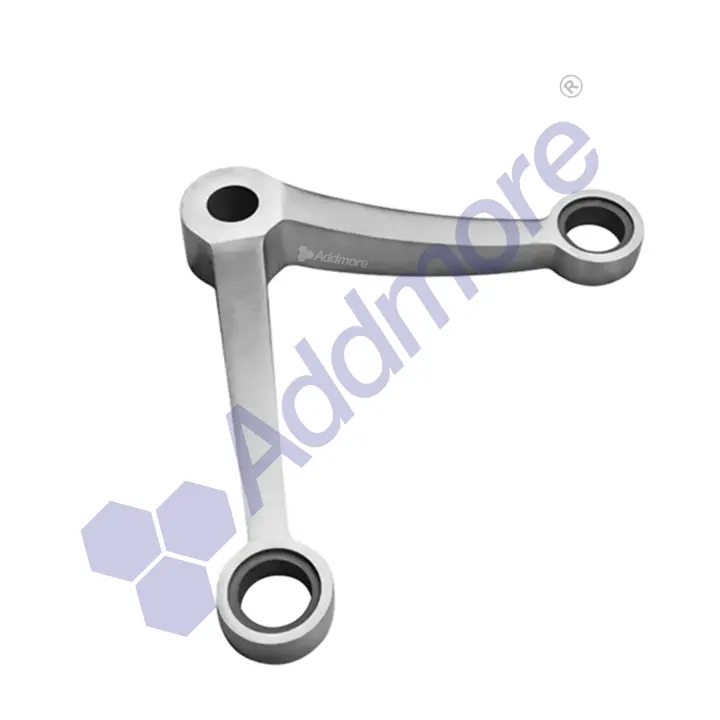

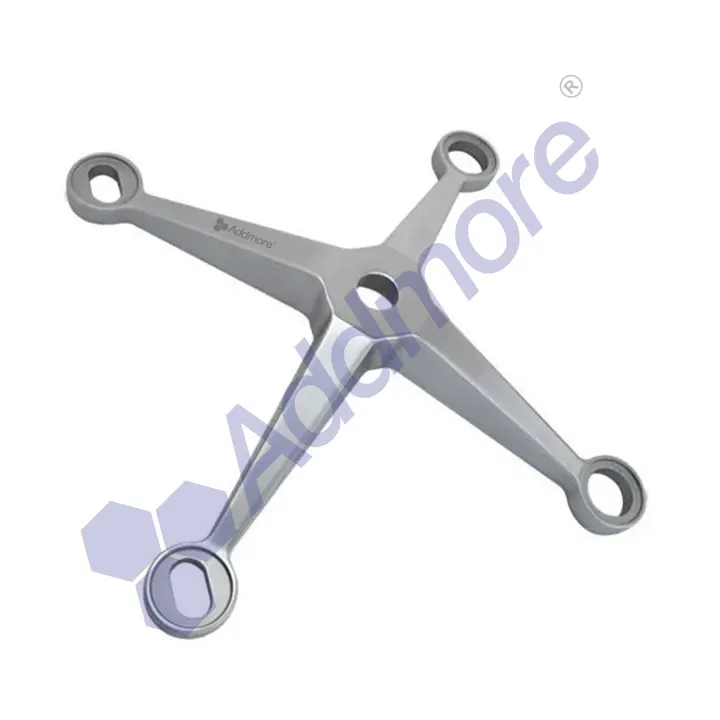

SS 3165 itemsSpider fittings without fin connect to a steel structure, wall or beam instead of a glass fin. 220 mm arm distance (155 mm on one-way).
How it is used
- Fix the spider body to the steel structure or with the ASB-01 connector to a wall or beam.
- Bolt routels through the drilled glass corners onto the spider arms.
- Seal joints with structural silicone.
Where it is used
- Facades on steel frames
- Glass walls fixed to RCC beams
- Lift shafts and stair glazing
How to choose
- Use ASB-01 to join a without-fin spider to a wall or beam.

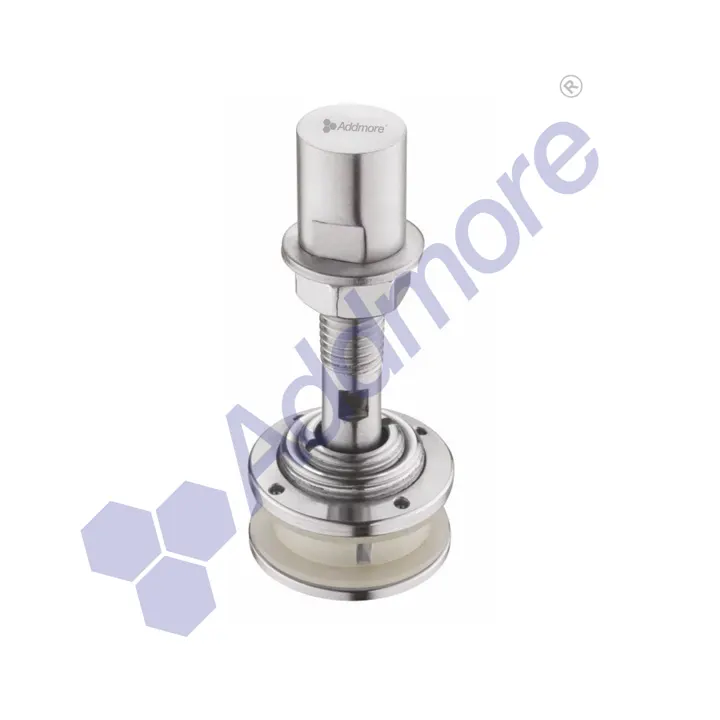

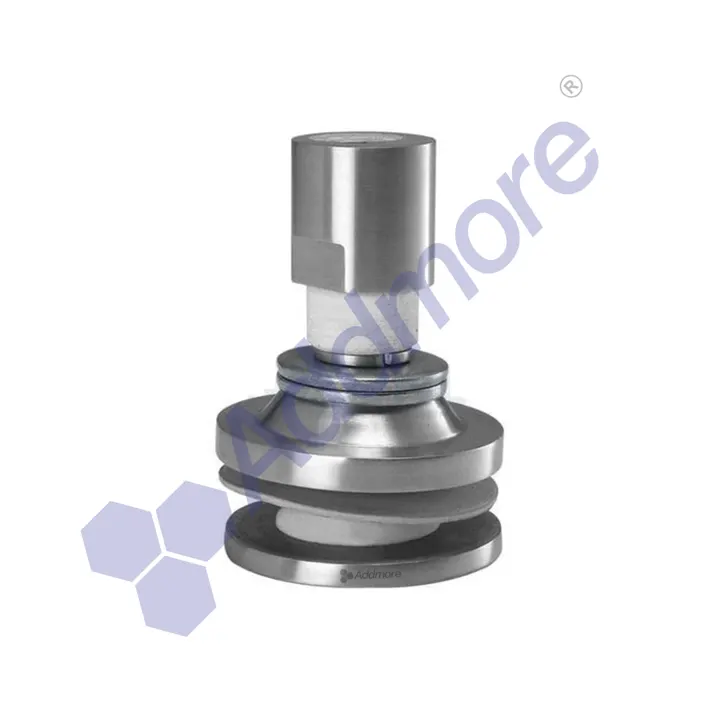

Routel

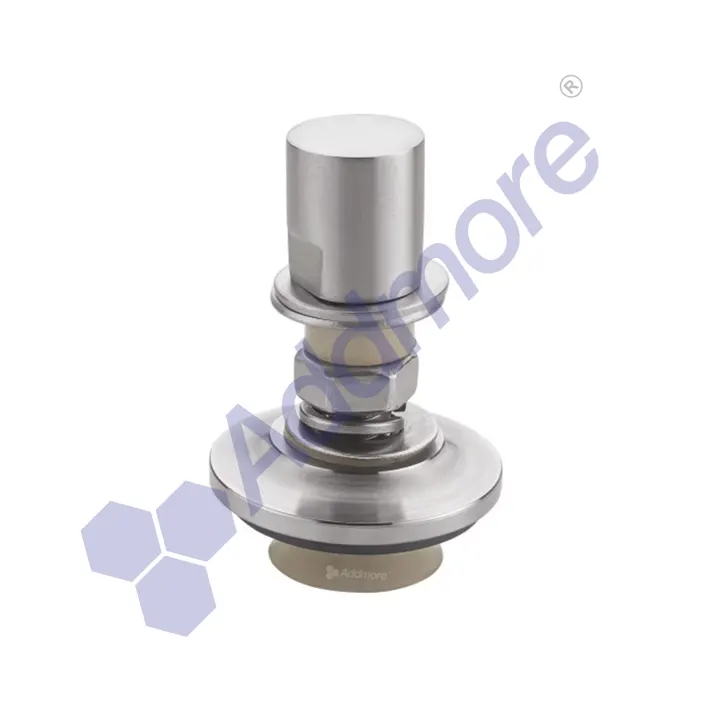

SS 3044 itemsRoutels are the bolts that hold drilled glass to spider fittings. They spread the load on the glass and allow small movement.
How it is used
- Fit routels through the drilled holes with their bushes and gaskets.
- Bolt the routel to the spider arm and set the gap to the structure.
Where it is used
- Spider fitting facades
- Canopies
- Glass balustrades on spiders
How to choose
- Articulated routels allow angle movement and suit tall facades; fixed flat and countersunk give a flush face.
Connector to Join without Fin Spider with Wall or Beam (MS)

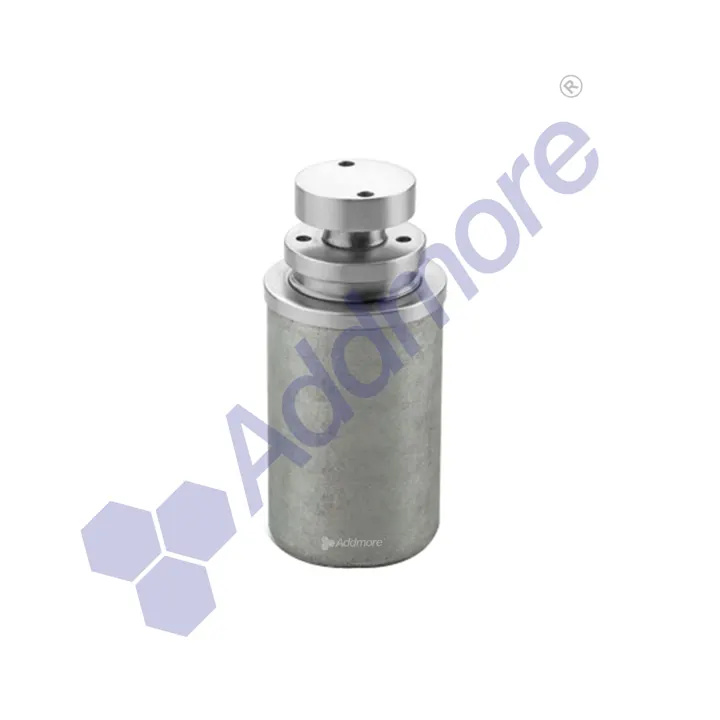

MS connector that joins a without-fin spider to a wall or beam.

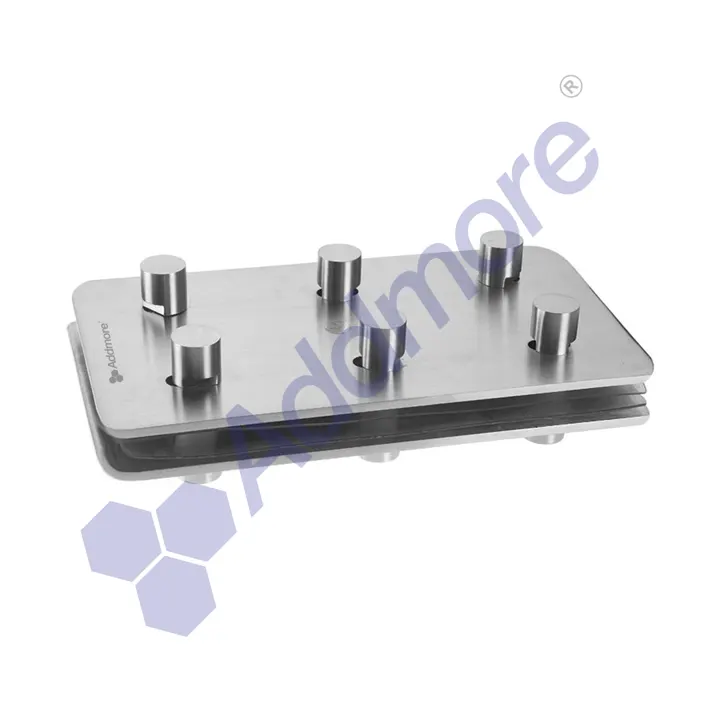

Fin Plates & Splice Plates

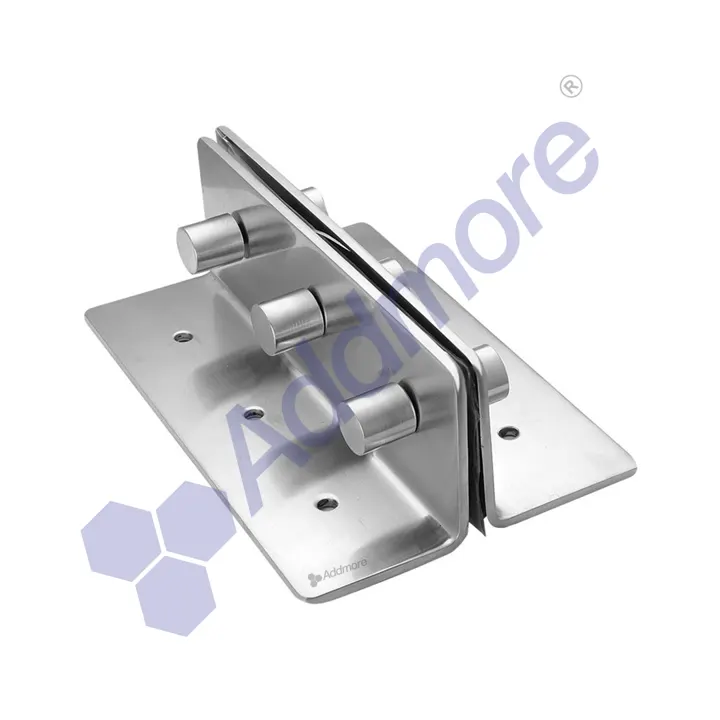

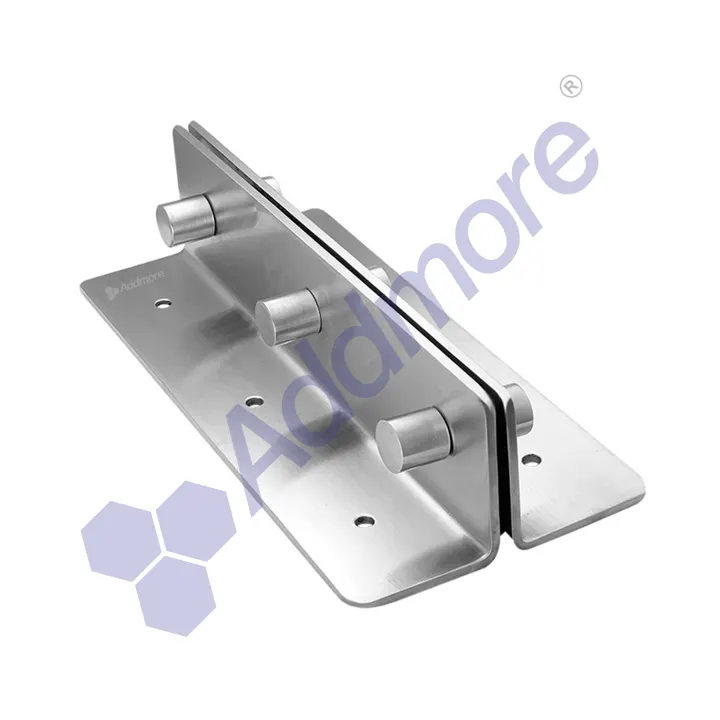

SS 3044 itemsFin plates join a glass fin to the facade structure; splice plates join two glass fins end to end to make longer fins.
How it is used
- Glass fins are drilled to the plate pattern.
- Clamp plates on both faces with gaskets and bolt through.
Where it is used
- Tall glass facades with glass fins
- Showroom fronts and atriums
How to choose
- 300 mm plates for normal fins; 400 mm for heavier or taller fins.

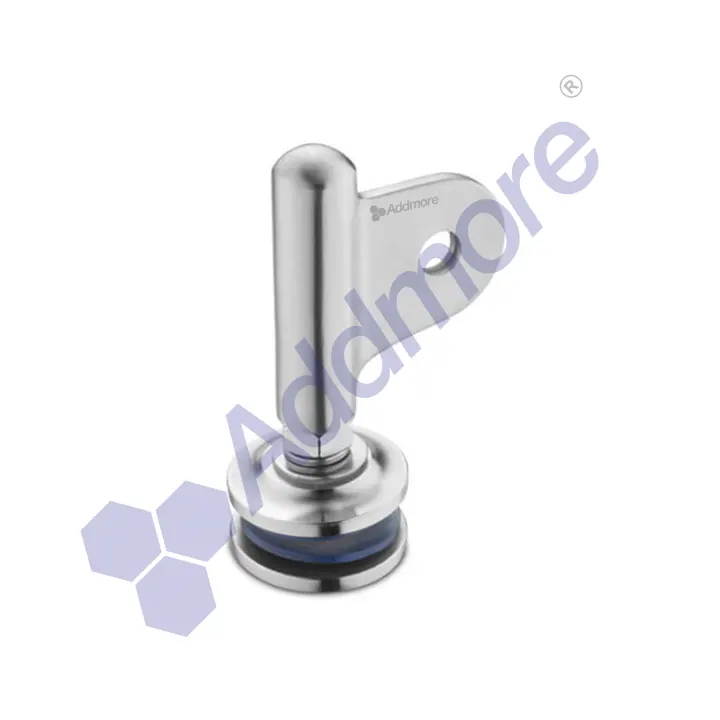

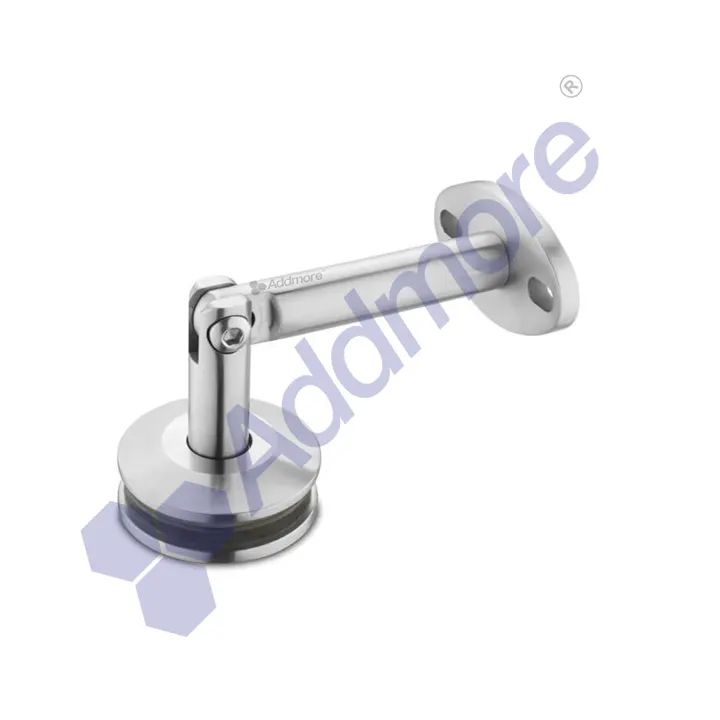

Canopy Fitting
SS 3168 itemsCanopy fittings hold a glass canopy above an entrance with stainless rods or wire rope. SS 316 for outdoor use.
How it is used

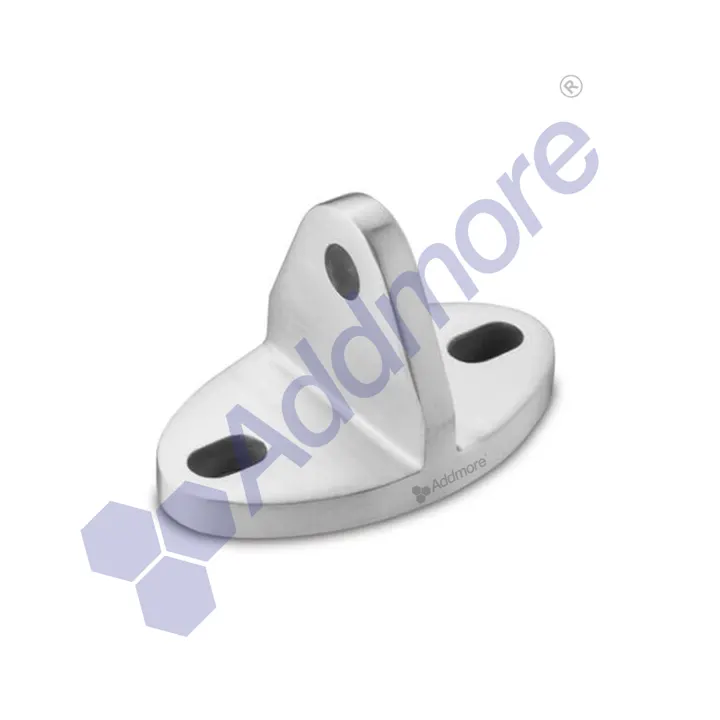

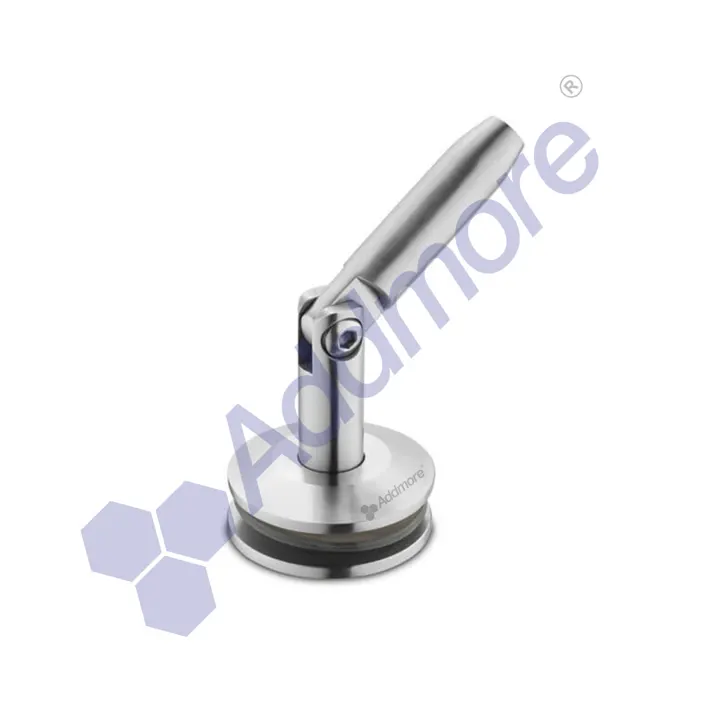

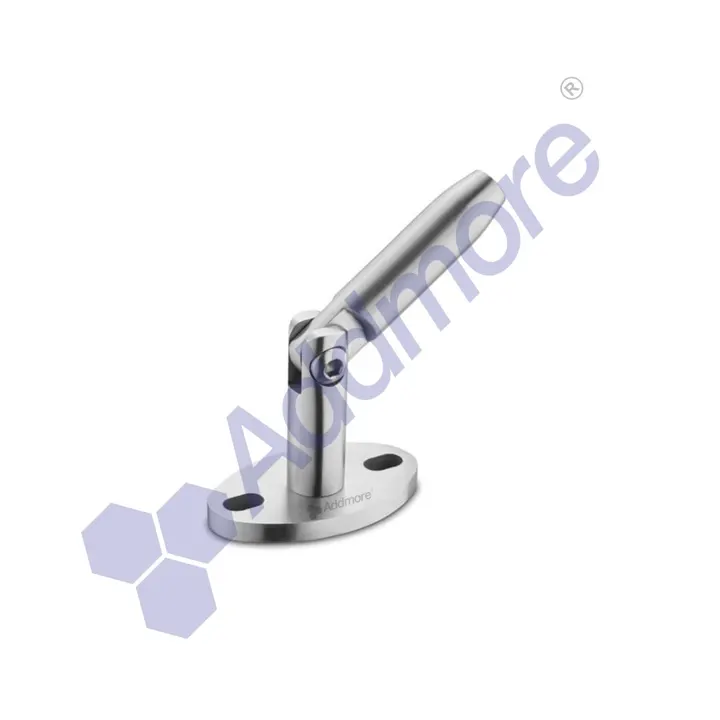

- Fix the wall connectors and glass connectors at the planned points.

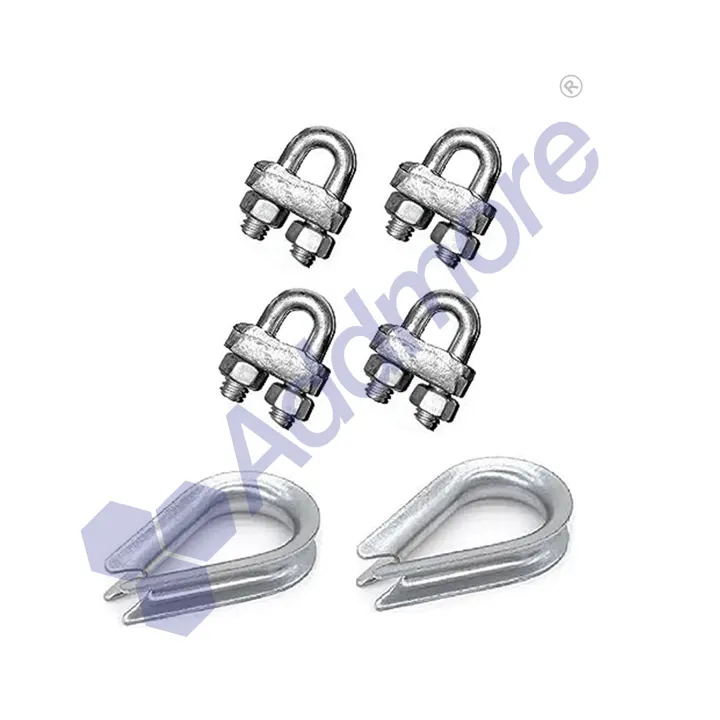

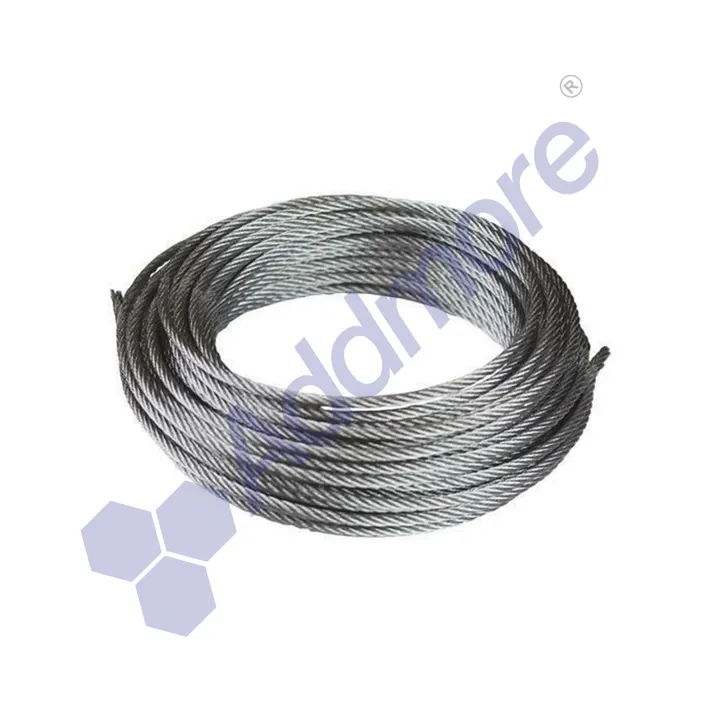

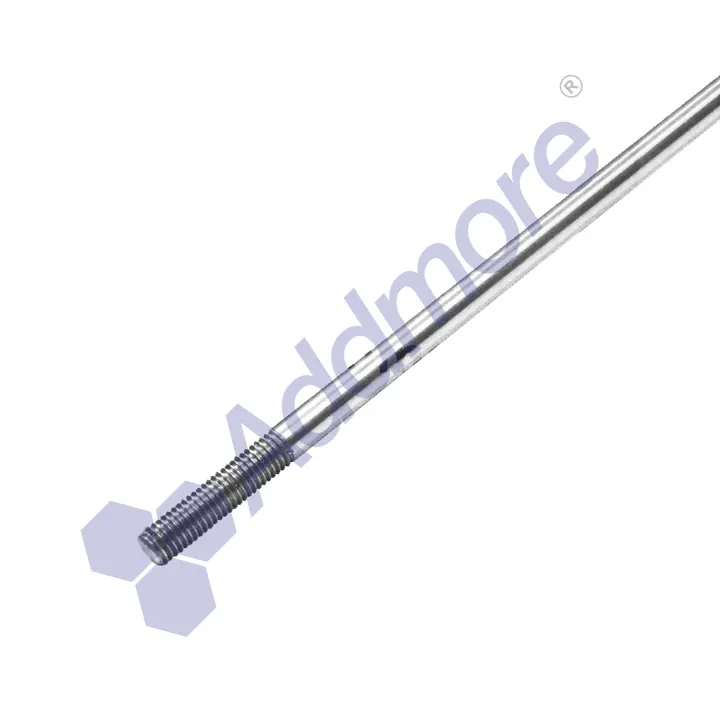

- Join them with the 16 mm threaded rod or 12 mm wire rope with its locking system.
- Adjust the rod or rope to level the glass.
Where it is used
- Building and shop entrance canopies
- Balcony and terrace covers
- Car porch glass canopies
How to choose
- Rod systems look clean and rigid; wire rope suits longer spans.
- Use laminated toughened glass for canopies overhead.
Not sure which one fits?
Send your door size, glass thickness and photos. We will suggest the right fittings.
