Canopy Fitting
ACF-05

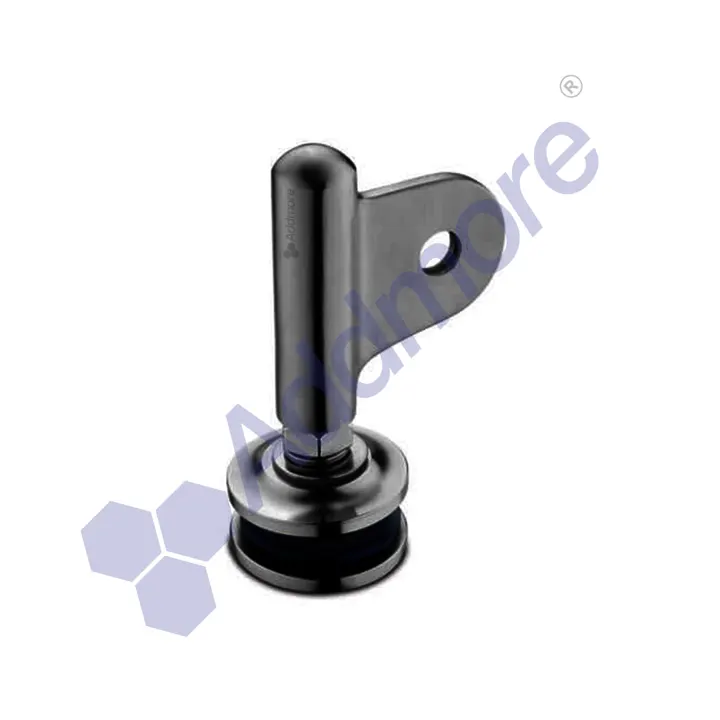

Wire Rope to Glass Connector
Connects wire rope to the glass.
- SS 316
₹2,650
List price per piece, excluding GST and freight.
Using ACF-05
How and where it is used
Canopy fittings hold a glass canopy above an entrance with stainless rods or wire rope. SS 316 for outdoor use.
How it is installed
- Fix the wall connectors and glass connectors at the planned points.
- Join them with the 16 mm threaded rod or 12 mm wire rope with its locking system.
- Adjust the rod or rope to level the glass.
Where it is used
- Building and shop entrance canopies
- Balcony and terrace covers
- Car porch glass canopies
Choosing tips
- Rod systems look clean and rigid; wire rope suits longer spans.
- Use laminated toughened glass for canopies overhead.

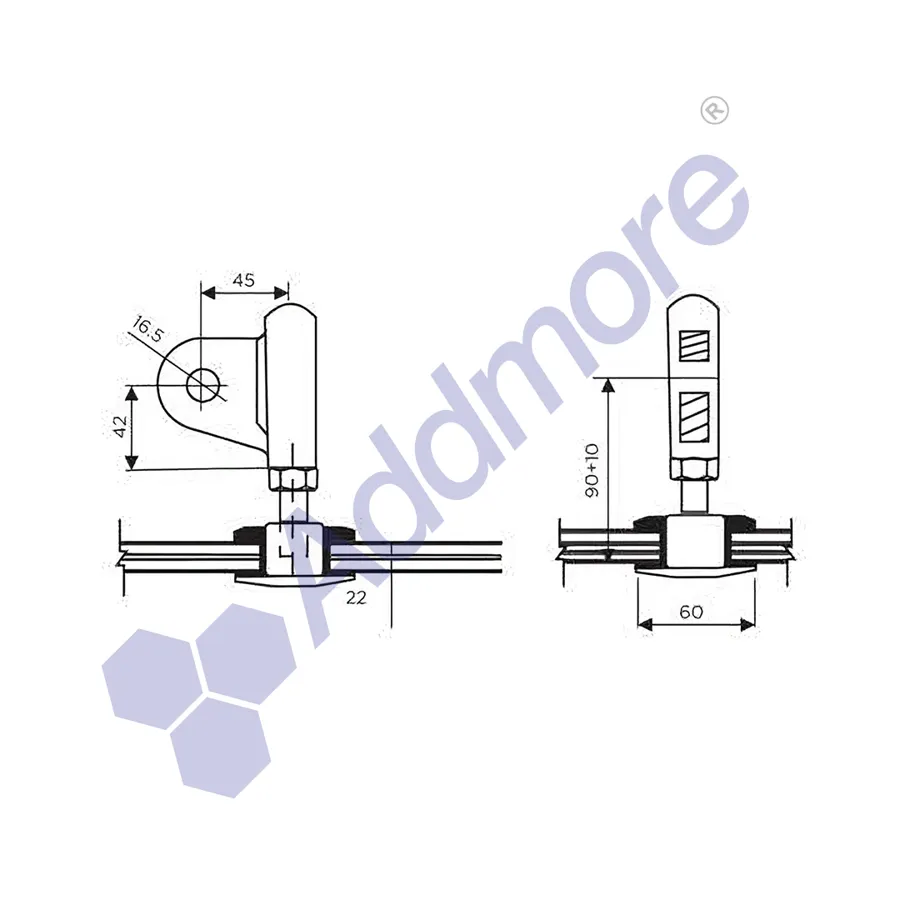

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
