AFS-9400
Double Spring Floor Hinge
Heavy-duty double spring floor hinge with Addmore Super Spring. Carries glass doors up to 120 kg and 1200 mm wide, holds open at 90° and 120°, and is cycle-tested to 10 lakh openings. The right choice for busy entrances.
- SS 304
- Super Spring
- Door weight 120 kg
- Door width 1200 mm
- Tested to 10,00,000 cycles
- Hold-open at 90° / 120°
₹8,200
List price per piece, excluding GST and freight. 304 stainless steel cover plate. Every model is cycle-tested. Max door size 2700 mm height.
Available in satin steel, Black, Rose Gold and Gold. Coloured finish price on request.
Using AFS-9400
How and where it is used
A floor spring is a hydraulic door closer set into the floor under a frameless glass door. It carries the full weight of the door on a spindle, swings it both ways, and brings it back to the centre at a controlled speed. Because it is hidden in the floor, the glass door stays completely clean-looking.
How it is installed
- A pocket is cut in the floor and the floor spring box is set level with the finished floor, then grouted in.
- The bottom patch fitting (APF-01) is clamped to the glass and sits on the floor spring spindle.
- A top patch (APF-02) with a top pivot (AFS-GDP) holds the door at the head, so the door turns on one vertical axis.
- Closing speed is adjusted with the valves on the unit; the door can be held open at 90° on models with hold-open.
Where it is used
- Showroom and shop entrances
- Office reception and cabin doors
- Hotel, hospital and bank lobbies
- Residential main and balcony glass doors
Choosing tips
- Choose by door weight and width first, then by how busy the door is. A higher cycle rating lasts longer in heavy traffic.
- AFS-9400 suits heavy entrance doors up to 120 kg; AFS-6600 is enough for light internal doors up to 80 kg.
- If the floor cannot be cut (finished marble, rented space), use the AHFP-105 hydraulic bottom patch instead.

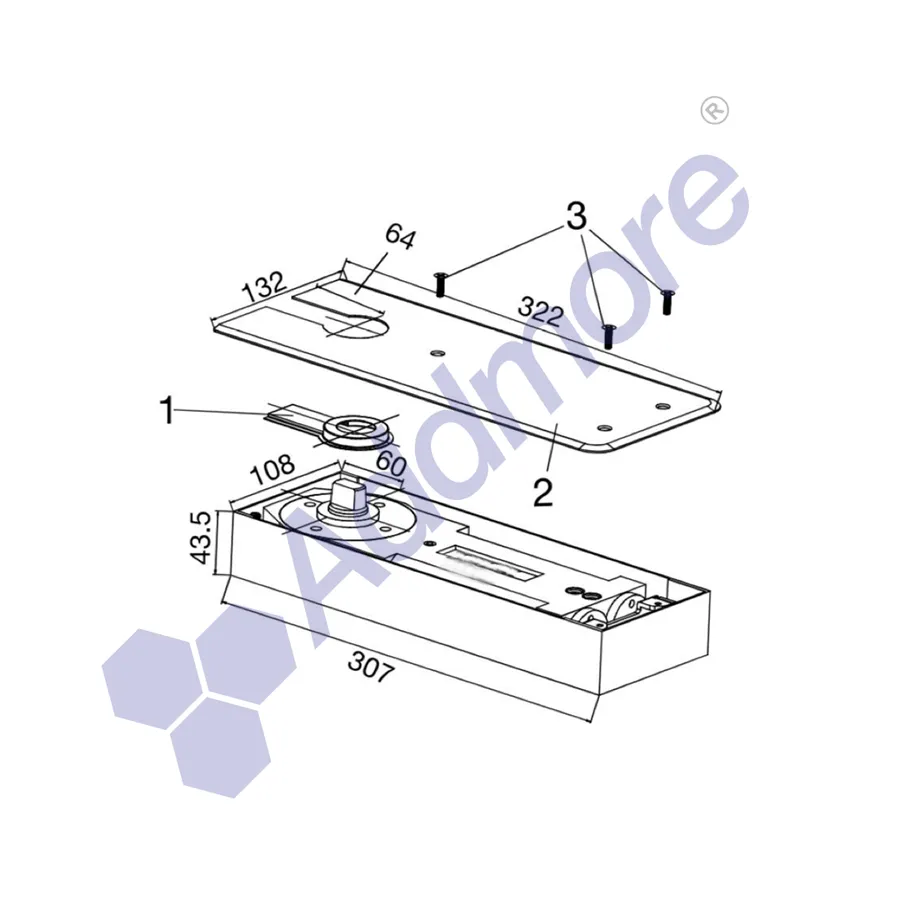

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
