Everything that makes a frameless glass door swing, close and lock: hydraulic floor springs cycle-tested up to 10 lakh openings, surface and concealed closers, SS 304 patch fittings, and ready combo sets matched to each floor spring.
A floor spring is a hydraulic door closer set into the floor under a frameless glass door. It carries the full weight of the door on a spindle, swings it both ways, and brings it back to the centre at a controlled speed. Because it is hidden in the floor, the glass door stays completely clean-looking. Black · Rose Gold · Gold available
| Model | Max door weight | Max width | Cycles tested | Notes | Price |
|---|---|---|---|---|---|
| AFS-9400 | 120 kg | 1200 mm | 10,00,000 | Hold open 90° / 120°, Super Spring | ₹8,200 |
| AFS-8400 | 100 kg | 1100 mm | 5,00,000 | Double spring | ₹5,000 |
| AFS-6600 | 80 kg | 900 mm | 3,00,000 | Single spring | ₹3,000 |
| AHFP-105 | 90 kg | 1000 mm | — | No floor digging | ₹9,000 |
Heavy-duty double spring floor hinge with Addmore Super Spring. Carries glass doors up to 120 kg and 1200 mm wide, holds open at 90° and 120°, and is cycle-tested to 10 lakh openings. The right choice for busy entrances.
Double spring floor hinge for doors up to 100 kg and 1100 mm wide. Tested to 5 lakh cycles. A strong all-rounder for office and shop doors.
Single spring floor hinge for lighter glass doors up to 80 kg and 900 mm wide. Tested to 3 lakh cycles, ideal for cabins and internal doors.
A hydraulic closer built into the bottom patch, so no floor digging is needed. Holds doors up to 90 kg and 1000 mm wide. Perfect for finished floors and renovations.
Door closers pull a door shut automatically after it is opened, so it never stays open by accident and never slams. Addmore offers surface-mounted closers for framed doors and concealed closers that hide inside the door or frame.
Classic surface-mounted overhead door closer with scissor arm. ADC-01 for doors up to 60 kg, ADC-02 for up to 120 kg.
Slim surface closer with slide (pelmet) arm and hold-open at 90°, in black. Clean look on modern doors.
Slim surface closer with slide (pelmet) arm and hold-open at 90°, in silver.
Concealed door closer hidden in the door and frame head. Takes doors up to 80 kg with no visible arm.
Heavy concealed door closer for doors up to 150 kg. Invisible when the door is closed.
Mounting saddle that lets a pelmet-arm closer be fixed on a glass door or pelmet.
Patch fittings are the clamps that hold a frameless toughened glass door and its side or top panels. They grip the glass between two plates with rubber gaskets, so the glass needs only a corner cut-out and no full frame. Black · Rose Gold · Gold available
Bottom door patch that clamps the lower corner of a glass door and connects it to the floor spring.
Top door patch that clamps the upper corner of a glass door and turns on the top pivot.
Over-panel patch with pivot, fixed to the wall or soffit where the door has a top glass panel.

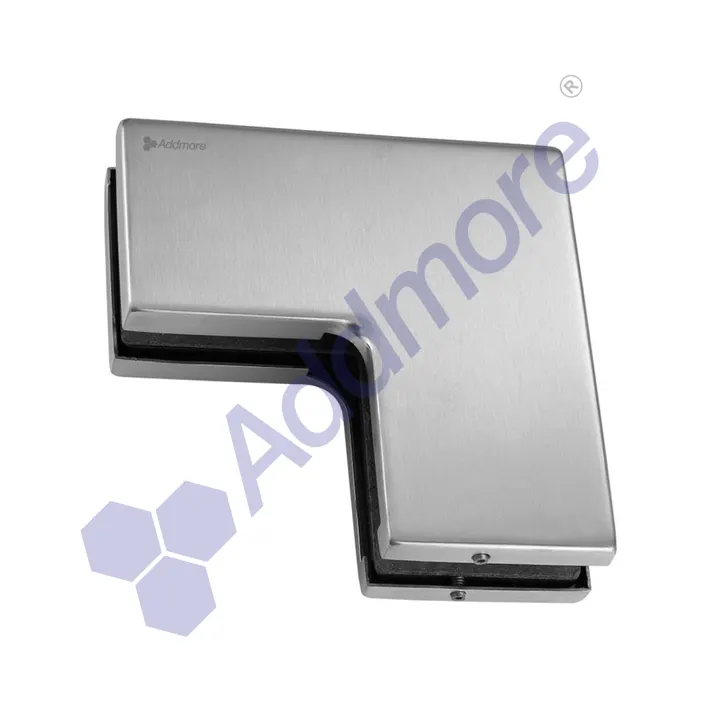

Big L patch with pivot. Connects the door, the glass over-panel and the side panel at one corner.
Small L patch joining the over-panel to a side panel, without pivot.

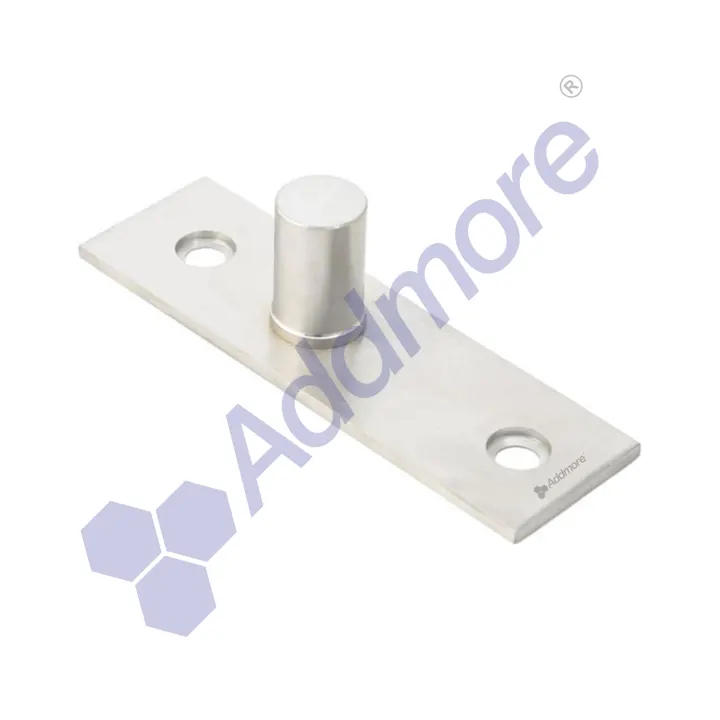

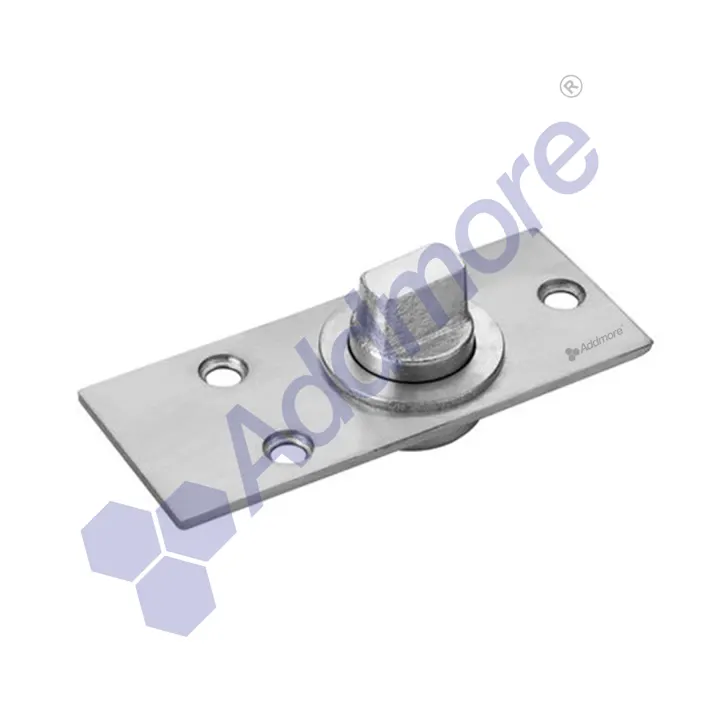

Top pivot that fixes to the ceiling or frame and holds the top patch of the door.

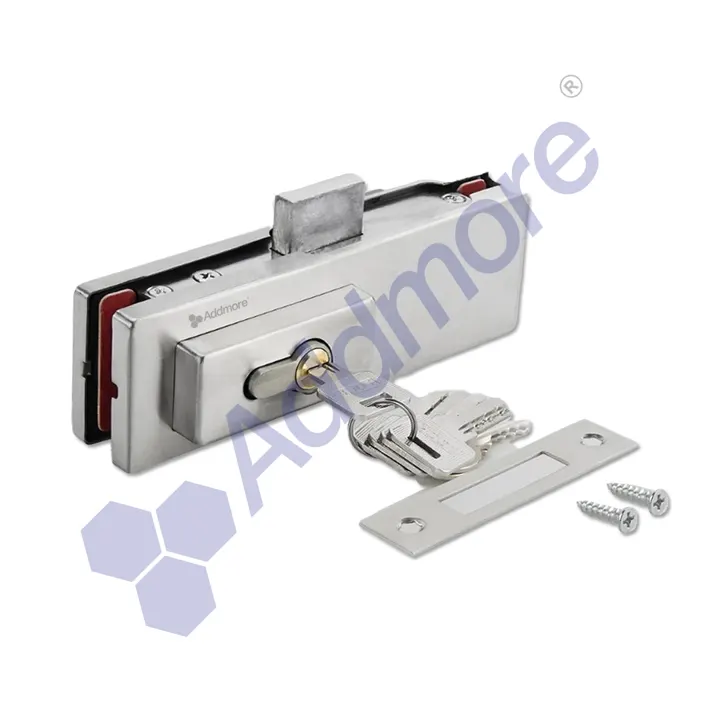

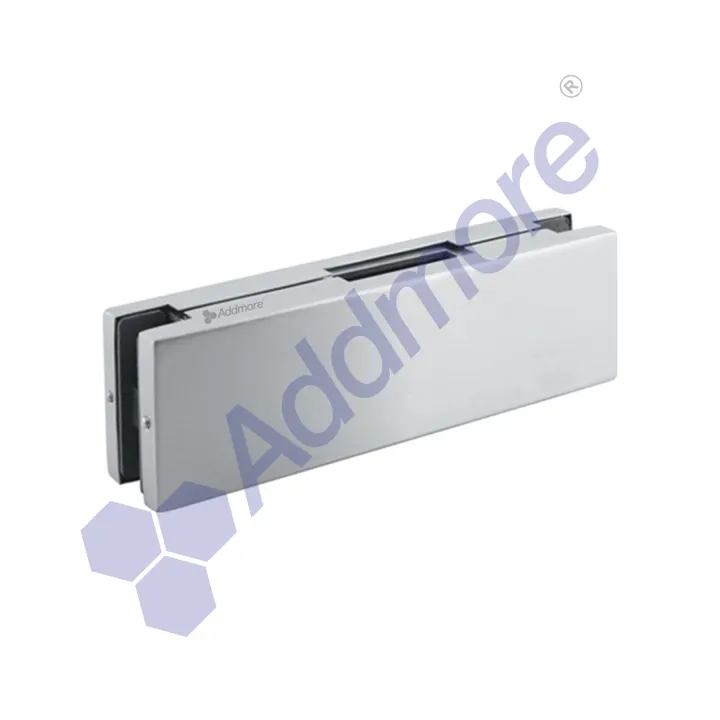

Patch lock for the bottom or centre of a glass door, with keys. Locks into the floor or a strike box.
Strike box that receives the APF-07 lock bolt on the fixed glass panel.

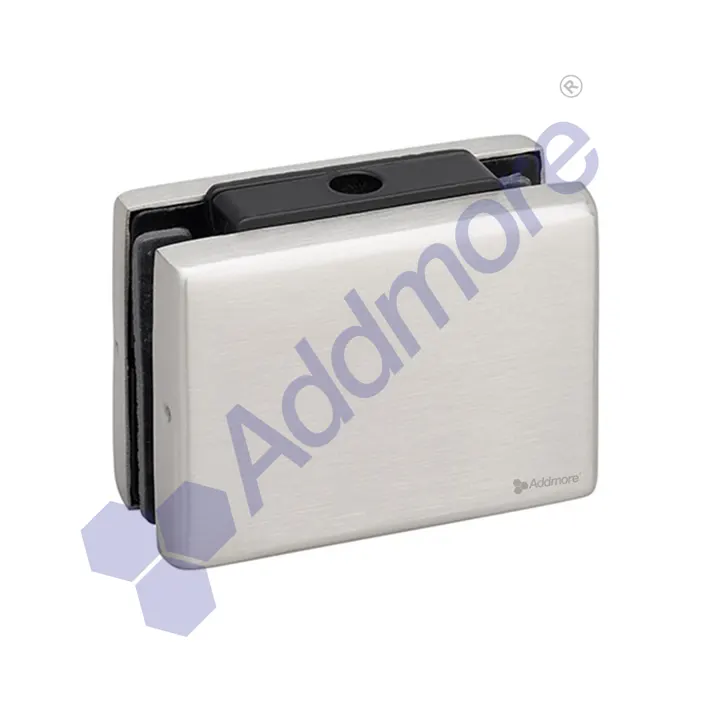

Joins two glass panels and fixes them to the wall or ceiling.
Mini floor hinge for light glass doors where a full floor spring is not needed.

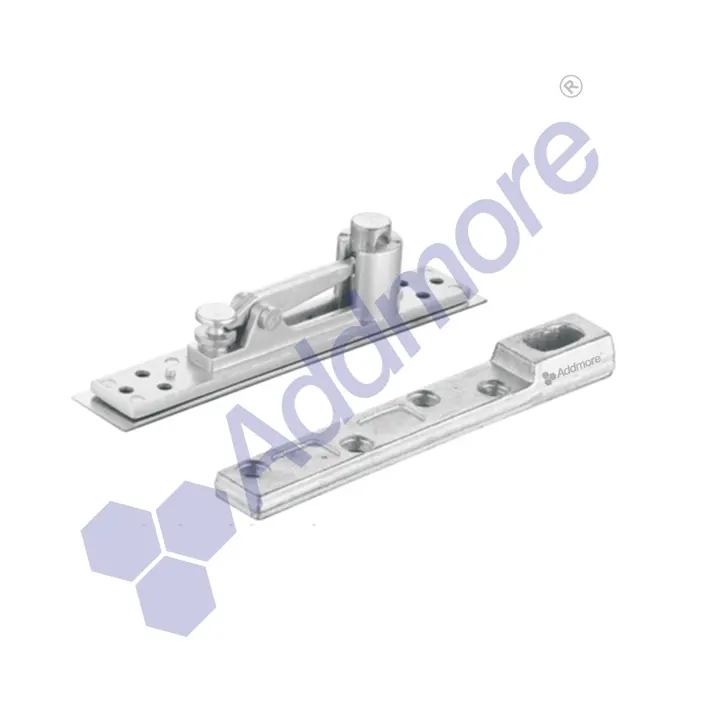

Top and bottom pivot set so wooden or aluminium doors can run on a floor spring.
A combo door set gives you every fitting needed for one frameless glass door in a single order, matched to one floor spring. It saves time on site and avoids missing parts.

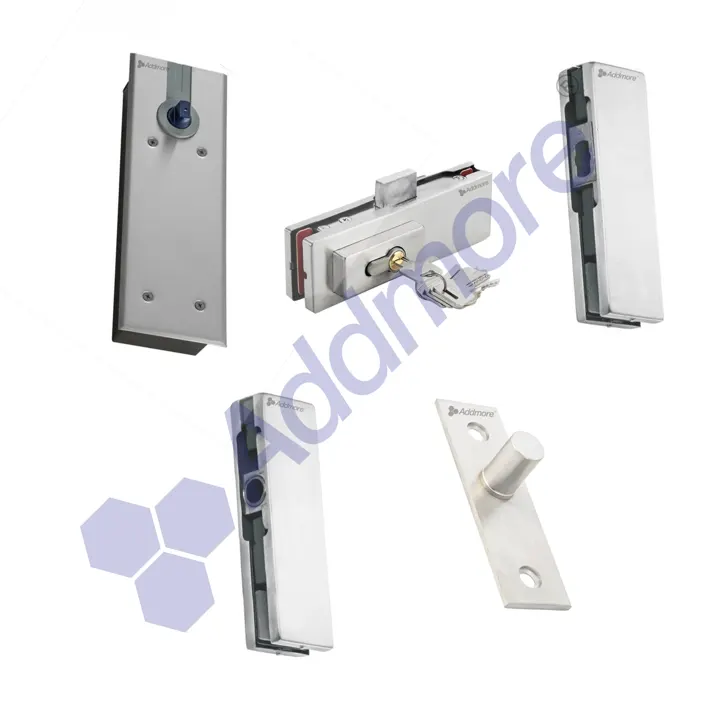

Complete set for one door with the AFS-6600 floor hinge (80 kg doors).
Complete set for one door with the AFS-8400 floor hinge (100 kg doors).
Complete set for one door with the AFS-9400 Super Spring floor hinge (120 kg doors).
Send your door size, glass thickness and photos. We will suggest the right fittings.
Add products to your enquiry list and send it to us. Our team confirms stock, finish, best price and delivery time for your city.
