Fin Plates & Splice Plates
AFP-01
Fin Plate 300 mm
300 mm fin plate.
- SS 304
₹10,000
List price per piece, excluding GST and freight.
Using AFP-01
How and where it is used
Fin plates join a glass fin to the facade structure; splice plates join two glass fins end to end to make longer fins.
How it is installed
- Glass fins are drilled to the plate pattern.
- Clamp plates on both faces with gaskets and bolt through.
Where it is used
- Tall glass facades with glass fins
- Showroom fronts and atriums
Choosing tips
- 300 mm plates for normal fins; 400 mm for heavier or taller fins.

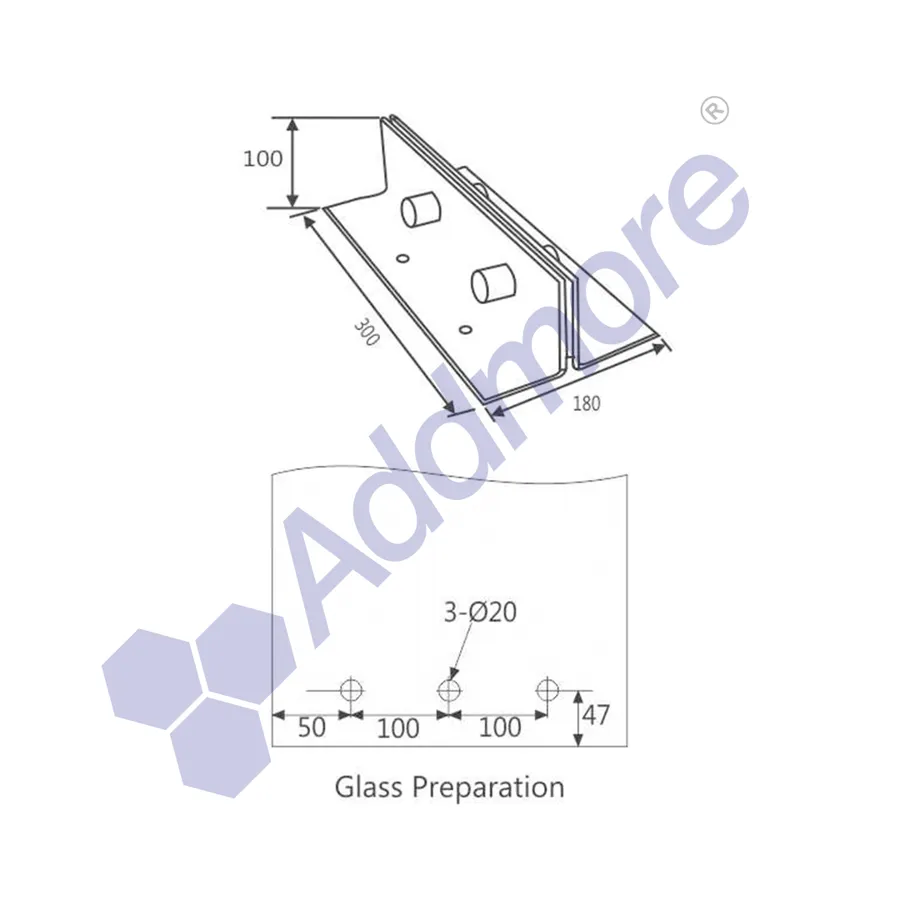

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
