Glass Door Pull Handle
AHH-02 to 07
H Type Handle (Two Tone)
H-type two-tone pull handle in 32 mm tube, in SS 202 and SS 304, three lengths.
- SS 304

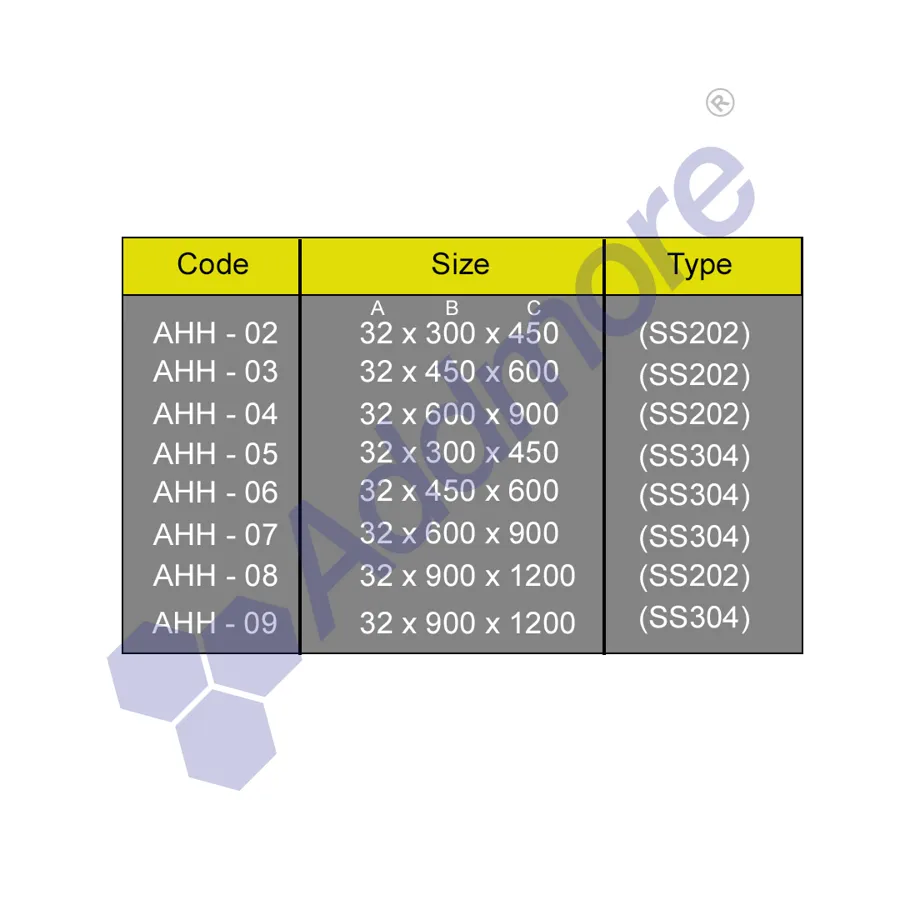

| Code | Size / option | Price |
|---|---|---|
| AHH-02 | 32×300×450 · SS 202 | ₹1,200 |
| AHH-03 | 32×450×600 · SS 202 | ₹1,600 |
| AHH-04 | 32×600×900 · SS 202 | ₹2,400 |
| AHH-05 | 32×300×450 · SS 304 | ₹2,300 |
| AHH-06 | 32×450×600 · SS 304 | ₹2,500 |
| AHH-07 | 32×600×900 · SS 304 | ₹3,500 |
List price per piece, excluding GST and freight. Size = diameter × hole-to-hole × overall length, in mm.
Available in satin steel, Black, Rose Gold and Gold. Coloured finish price on request.
Using AHH-02 to 07
How and where it is used
Pull handles for glass and wooden doors, in H, D and offset shapes, SS 202 and SS 304, plain or two-tone.
How it is installed
- Drill holes in the glass at the handle's hole-to-hole distance before toughening.
- Fix with the bolts, sleeves and washers supplied; back-to-back on both faces of the door.
Where it is used
- Glass entrance doors
- Office and shop doors
- Wooden and aluminium doors
Choosing tips
- Pick handle length to suit door height; 450–600 mm suits most entrance doors.
- SS 304 resists rust better outdoors and near the sea.
- AHL-55 adds a floor lock built into the handle for main entrances.
Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
