Floor Spring

AFS-8400

Double Spring Floor Hinge

Double spring floor hinge for doors up to 100 kg and 1100 mm wide. Tested to 5 lakh cycles. A strong all-rounder for office and shop doors.

SS 304
Door weight 100 kg
Door width 1100 mm
Tested to 5,00,000 cycles

₹5,000

List price per piece, excluding GST and freight. 304 stainless steel cover plate. Every model is cycle-tested. Max door size 2700 mm height.

Available in satin steel, Black, Rose Gold and Gold. Coloured finish price on request.

Using AFS-8400

How and where it is used

A floor spring is a hydraulic door closer set into the floor under a frameless glass door. It carries the full weight of the door on a spindle, swings it both ways, and brings it back to the centre at a controlled speed. Because it is hidden in the floor, the glass door stays completely clean-looking.

How it is installed

A pocket is cut in the floor and the floor spring box is set level with the finished floor, then grouted in.
The bottom patch fitting (APF-01) is clamped to the glass and sits on the floor spring spindle.
A top patch (APF-02) with a top pivot (AFS-GDP) holds the door at the head, so the door turns on one vertical axis.
Closing speed is adjusted with the valves on the unit; the door can be held open at 90° on models with hold-open.

Where it is used

Showroom and shop entrances
Office reception and cabin doors
Hotel, hospital and bank lobbies
Residential main and balcony glass doors

Choosing tips

Choose by door weight and width first, then by how busy the door is. A higher cycle rating lasts longer in heavy traffic.
AFS-9400 suits heavy entrance doors up to 120 kg; AFS-6600 is enough for light internal doors up to 80 kg.
If the floor cannot be cut (finished marble, rented space), use the AHFP-105 hydraulic bottom patch instead.

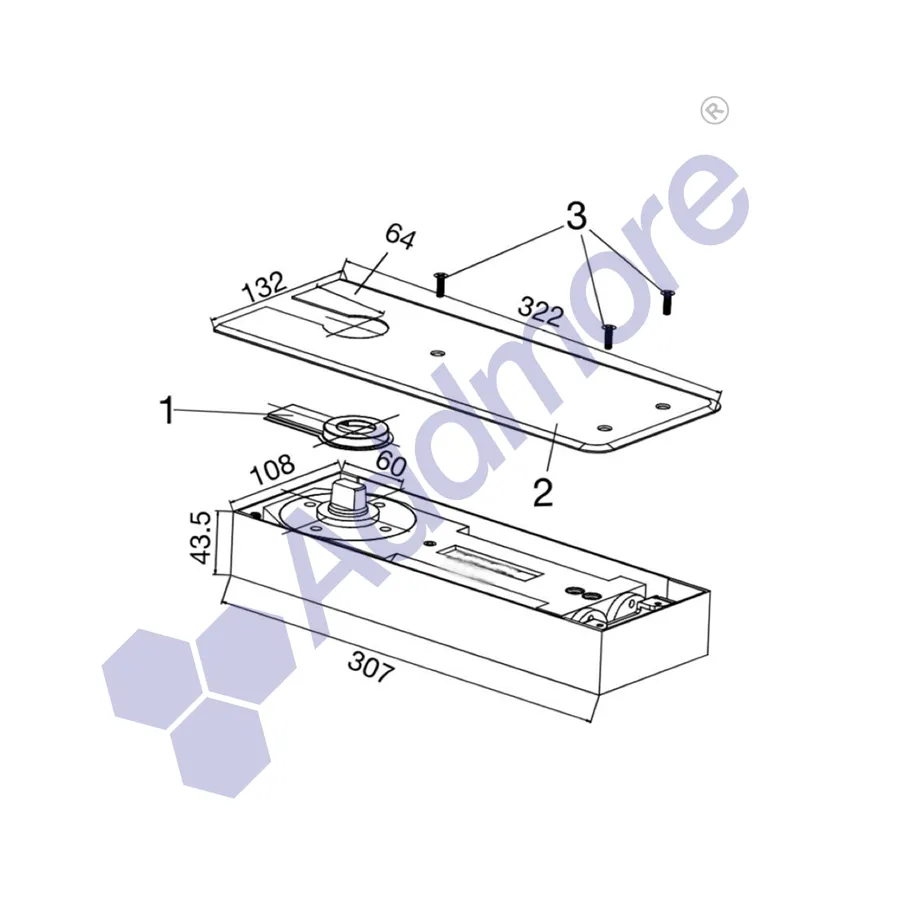

Technical drawing

Dimensions & glass preparation

Dimensions in mm. Confirm glass cut-outs with our team before toughening.
