Spider Fitting, Without Fin
ASF-06

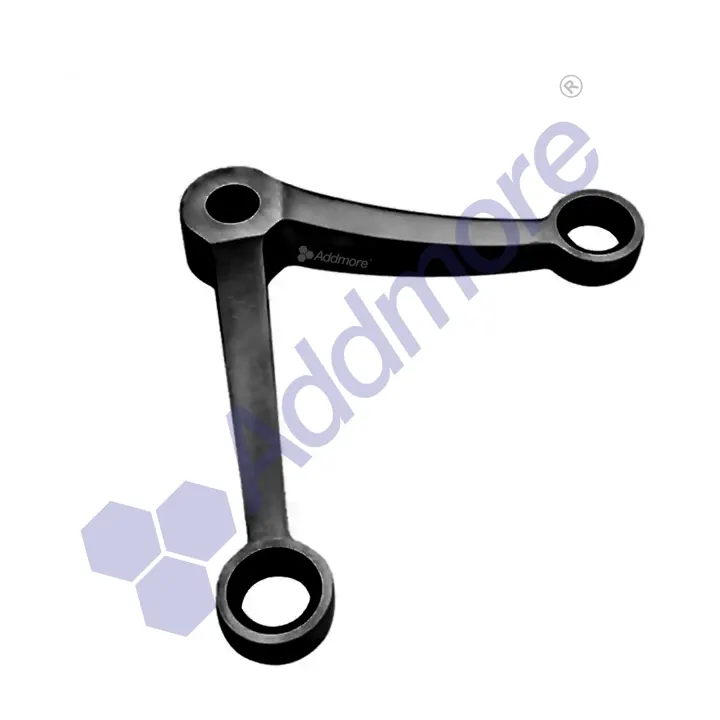

Two Way Spider without Fin 90°
Two-way 90° spider without fin, 220 mm arm.
- SS 316
- 220 mm arm distance
₹4,645
List price per piece, excluding GST and freight. 220 mm arm distance unless noted.
Using ASF-06
How and where it is used
Spider fittings without fin connect to a steel structure, wall or beam instead of a glass fin. 220 mm arm distance (155 mm on one-way).
How it is installed
- Fix the spider body to the steel structure or with the ASB-01 connector to a wall or beam.
- Bolt routels through the drilled glass corners onto the spider arms.
- Seal joints with structural silicone.
Where it is used
- Facades on steel frames
- Glass walls fixed to RCC beams
- Lift shafts and stair glazing
Choosing tips
- Use ASB-01 to join a without-fin spider to a wall or beam.

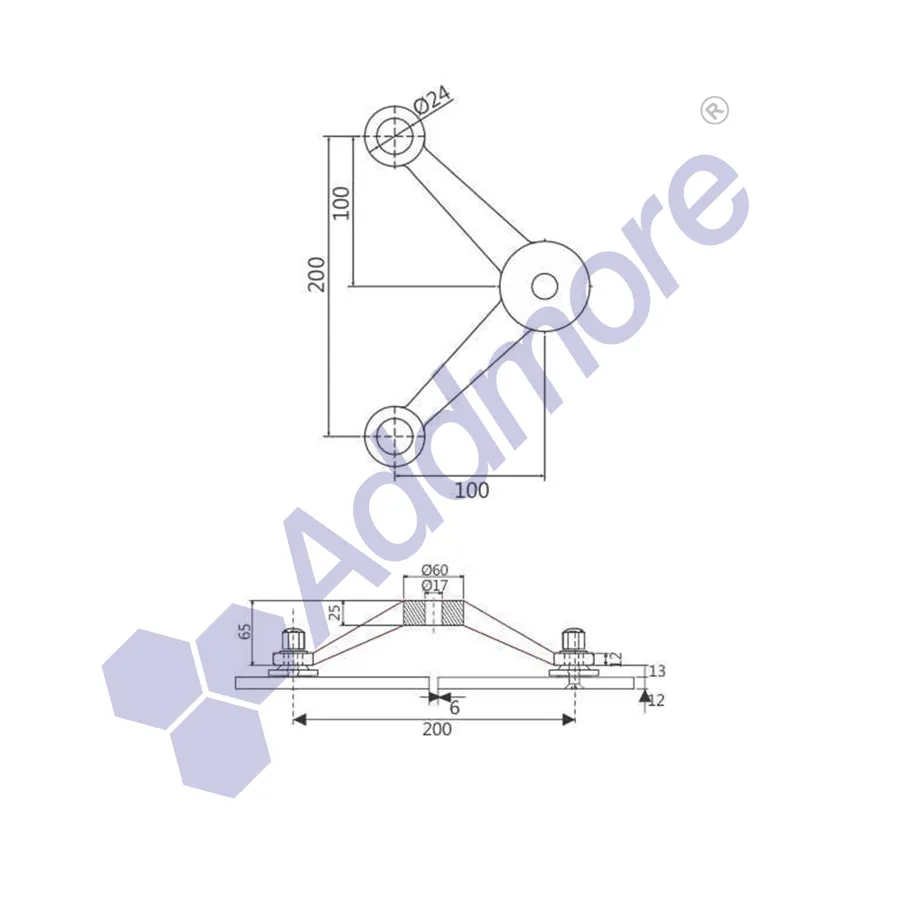

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
Also in Spider Fitting, Without Fin
