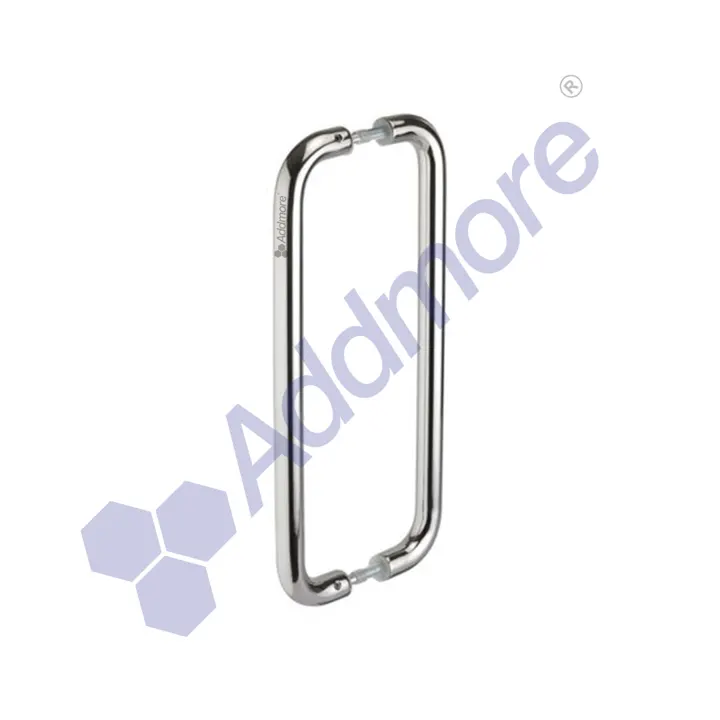

Glass Door Pull Handle
ADH-01 to 06
D Type Handle (Two Tone)
D-type two-tone pull handle in SS 202 and SS 304.
- SS 304
| Code | Size / option | Price |
|---|---|---|
| ADH-01 | 25×302×327 · SS 202 | ₹1,200 |
| ADH-02 | 32×460×485 · SS 202 | ₹1,800 |
| ADH-04 | 25×302×327 · SS 304 | ₹2,000 |
| ADH-06 | 32×568×600 · SS 304 | ₹2,800 |
List price per piece, excluding GST and freight. Size = diameter × hole-to-hole × overall length, in mm.
Available in satin steel, Black, Rose Gold and Gold. Coloured finish price on request.
Using ADH-01 to 06
How and where it is used
Pull handles for glass and wooden doors, in H, D and offset shapes, SS 202 and SS 304, plain or two-tone.
How it is installed
- Drill holes in the glass at the handle's hole-to-hole distance before toughening.
- Fix with the bolts, sleeves and washers supplied; back-to-back on both faces of the door.
Where it is used
- Glass entrance doors
- Office and shop doors
- Wooden and aluminium doors
Choosing tips
- Pick handle length to suit door height; 450–600 mm suits most entrance doors.
- SS 304 resists rust better outdoors and near the sea.
- AHL-55 adds a floor lock built into the handle for main entrances.

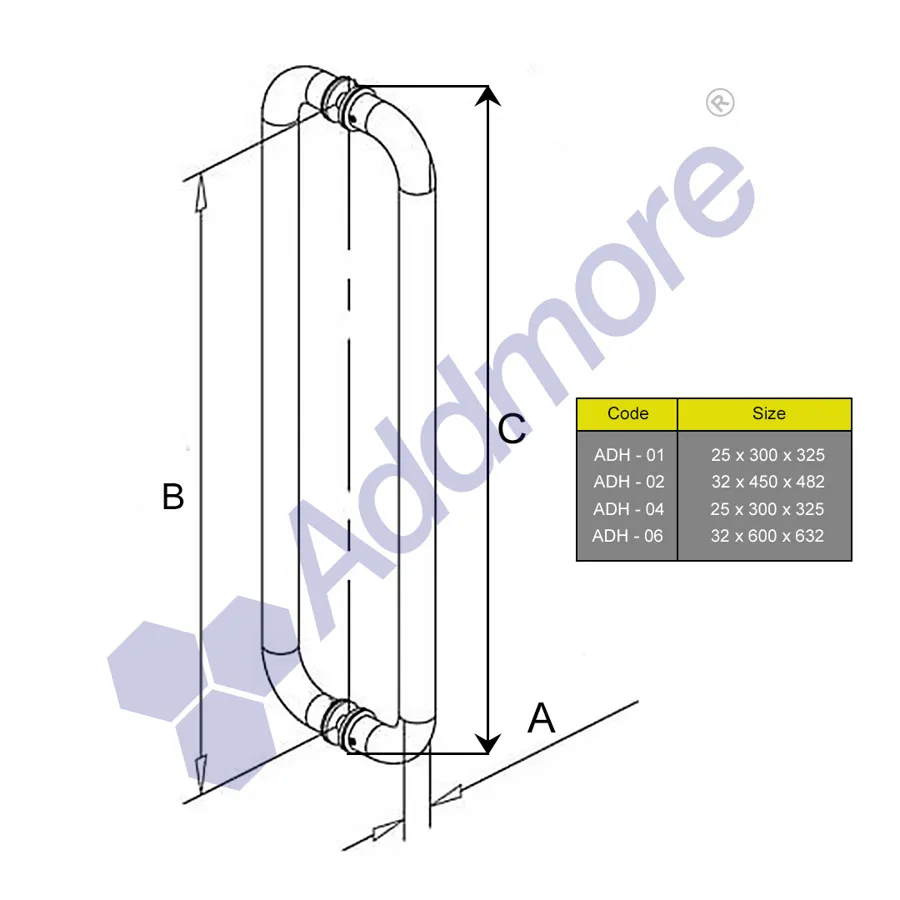

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
Also in Glass Door Pull Handle
Related products

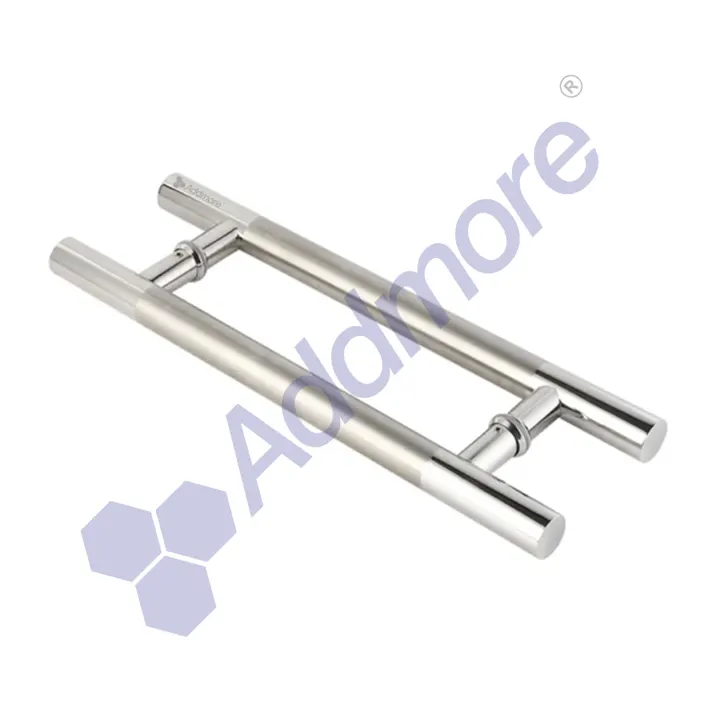

AHH-02 to 07
H Type Handle (Two Tone)
H-type two-tone pull handle in 32 mm tube, in SS 202 and SS 304, three lengths.
from ₹1,200

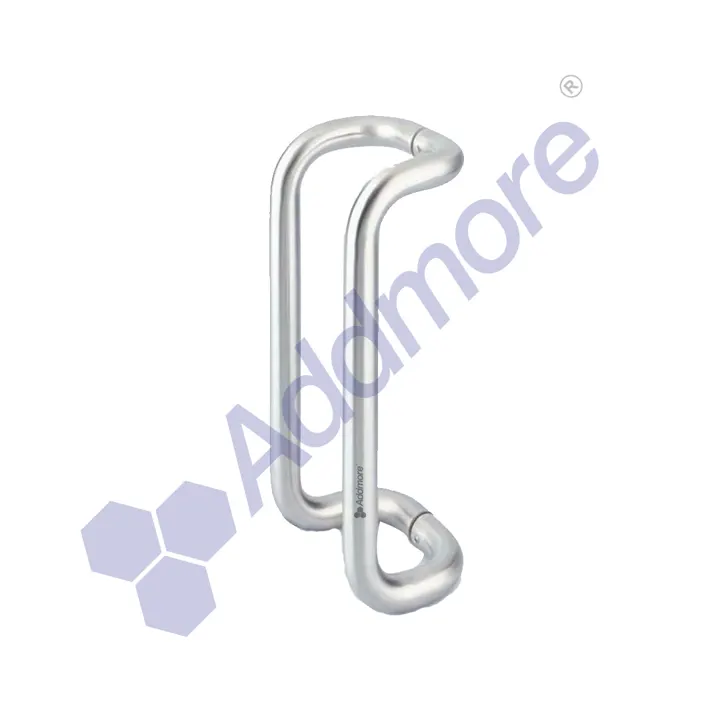

AOH-01 / 02
Offset Handle (Double D Bend)
Offset (double D bend) handle in full matt or black matt.
from ₹3,500

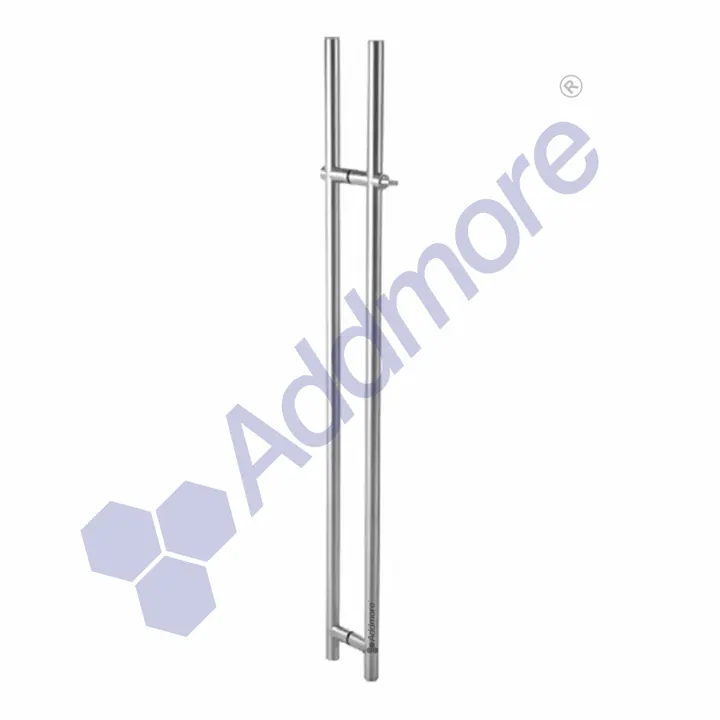

AHL-55
