Glass Door Pull Handle
AOH-01 / 02
Offset Handle (Double D Bend)
Offset (double D bend) handle in full matt or black matt.
| Code | Size / option | Price |
|---|---|---|
| AOH-01 | 22×450×472 · Full Matt | ₹3,500 |
| AOH-01 BM | 22×450×472 · Black Matt | ₹4,000 |
| AOH-02 | 25×600×625 · Full Matt | ₹4,500 |
| AOH-02 BM | 25×600×625 · Black Matt | ₹5,200 |
List price per piece, excluding GST and freight. Size = diameter × hole-to-hole × overall length, in mm.
Available in satin steel, Black, Rose Gold and Gold. Coloured finish price on request.
Using AOH-01 / 02
How and where it is used
Pull handles for glass and wooden doors, in H, D and offset shapes, SS 202 and SS 304, plain or two-tone.
How it is installed
- Drill holes in the glass at the handle's hole-to-hole distance before toughening.
- Fix with the bolts, sleeves and washers supplied; back-to-back on both faces of the door.
Where it is used
- Glass entrance doors
- Office and shop doors
- Wooden and aluminium doors
Choosing tips
- Pick handle length to suit door height; 450–600 mm suits most entrance doors.
- SS 304 resists rust better outdoors and near the sea.
- AHL-55 adds a floor lock built into the handle for main entrances.

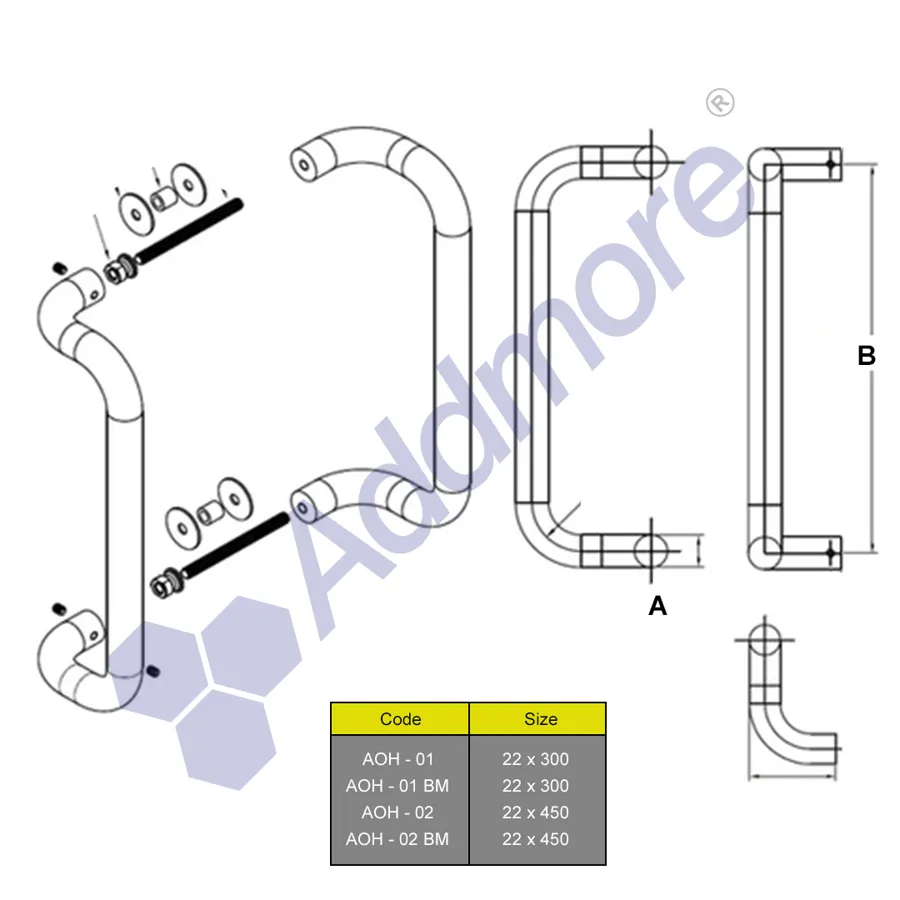

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
