AFS-8400 Set
Combo Door Set with AFS-8400 Floor Hinge
Complete set for one door with the AFS-8400 floor hinge (100 kg doors).
from ₹7,250
Combo Door Set

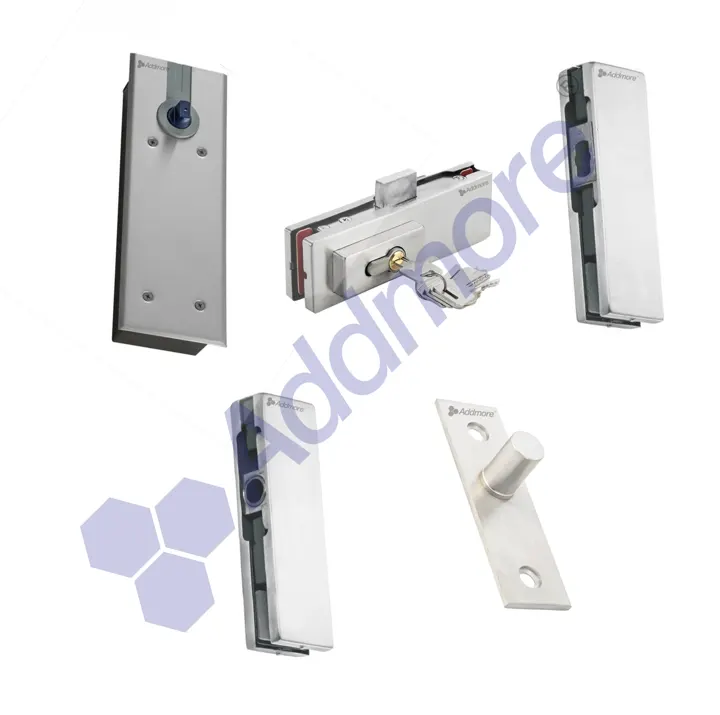

AFS-6600 Set
Combo Door Set with AFS-6600 Floor Hinge
Complete set for one door with the AFS-6600 floor hinge (80 kg doors).
| Code | Size / option | Price |
|---|---|---|
| 5 in 1 | with APF-07 lock | ₹7,350 |
| 4 in 1 | without lock | ₹5,250 |
List price per piece, excluding GST and freight. 5 in 1: Floor Hinge, Bottom Patch, Top Patch, Door Lock, Top Pivot. 4 in 1: same set without the door lock.
Using AFS-6600 Set
How and where it is used
A combo door set gives you every fitting needed for one frameless glass door in a single order, matched to one floor spring. It saves time on site and avoids missing parts.
How it is installed
- Floor hinge is set into the floor; bottom patch clamps the glass and sits on it.
- Top patch and top pivot hold the door head.
- The 5 in 1 set adds the APF-07 lock for doors that must be locked.
Where it is used
- New glass door installations
- Shop and office entrances
- Contractors ordering doors in bulk
Choosing tips
- Pick the floor hinge by door weight (80, 100 or 120 kg), then choose 4 in 1 or 5 in 1 depending on whether you need a lock.
Also in Combo Door Set
Related products
AFS-9400 Set
Combo Door Set with AFS-9400 Floor Hinge
Complete set for one door with the AFS-9400 Super Spring floor hinge (120 kg doors).
from ₹10,450

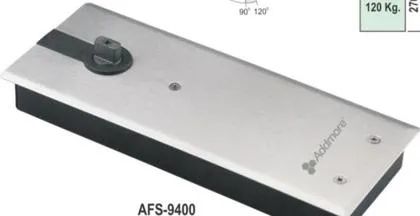

AFS-9400
Double Spring Floor Hinge
Heavy-duty double spring floor hinge with Addmore Super Spring. Carries glass doors up to 120 kg and 1200 mm wide, holds open at 90° and 120°, and is cycle-tested to 10 lakh openings. The right choice for busy entrances.
₹8,200

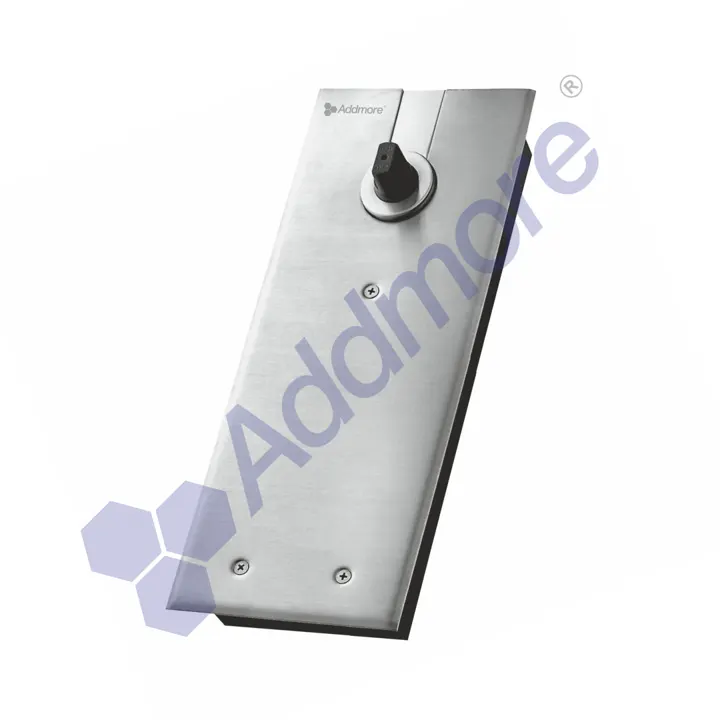

AFS-8400
