APF-01
Bottom Door Patch
Bottom door patch that clamps the lower corner of a glass door and connects it to the floor spring.
₹1,000
Patch Fitting
APF-07

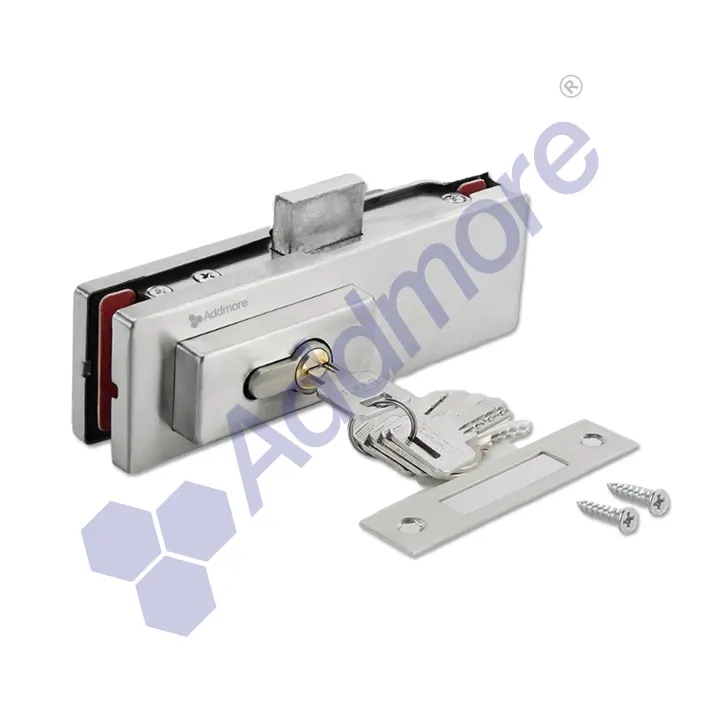

Bottom / Center Door Patch Lock
Patch lock for the bottom or centre of a glass door, with keys. Locks into the floor or a strike box.
- SS 304
₹2,100
List price per piece, excluding GST and freight. 304 stainless steel cover plates. Listed prices are for standard satin steel.
Available in satin steel, Black, Rose Gold and Gold. Coloured finish price on request.
Using APF-07
How and where it is used
Patch fittings are the clamps that hold a frameless toughened glass door and its side or top panels. They grip the glass between two plates with rubber gaskets, so the glass needs only a corner cut-out and no full frame.
How it is installed
- The glass is cut and toughened with the standard corner notch for each patch, before installation.
- Bottom and top patches clamp the door; the bottom patch sits on the floor spring, the top patch on the top pivot.
- Over-panel and L patches join the door head to a fixed top light or side panel.
- Tighten the clamp screws evenly on the gaskets; never let metal touch the glass directly.
Where it is used
- Frameless glass entrance doors
- Glass cabins and partitions with door
- Shop fronts with fixed side lights
- Glass doors between wall and ceiling
Choosing tips
- Most patches suit 10–12 mm toughened glass; confirm glass thickness when ordering.
- Use APF-03, APF-04 or APF-05 when the door has a fixed glass panel above or beside it.
- Add APF-07 lock with APF-07 (F) strike box for a lockable door.

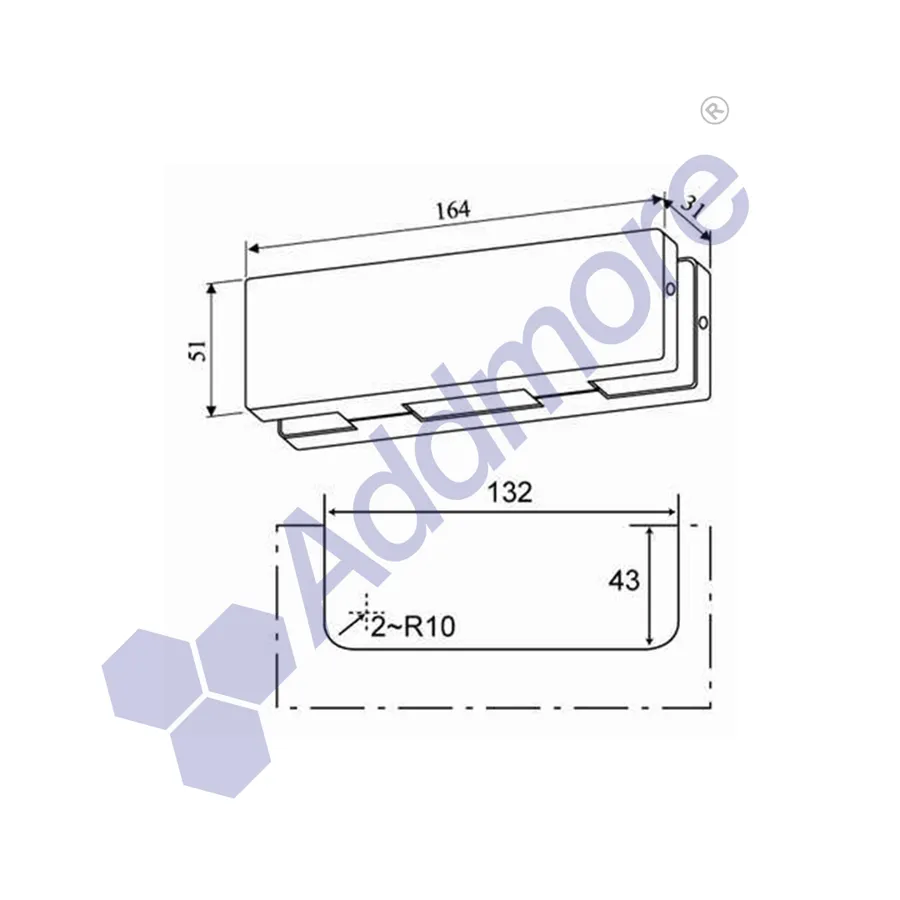

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
Also in Patch Fitting
Related products
APF-02
Top Door Patch
Top door patch that clamps the upper corner of a glass door and turns on the top pivot.
₹1,000
APF-03
Wall Mounted Over Panel Patch with Pivot
Over-panel patch with pivot, fixed to the wall or soffit where the door has a top glass panel.
₹1,500
APF-04
Over Panel with Side Panel Connecting Patch with Pivot (Big L)
Big L patch with pivot. Connects the door, the glass over-panel and the side panel at one corner.
₹2,000
