ASS-1000/90
Track to Track Connector 90° (for ASS-1000)
90° track connector for L-shaped pipe sliding systems.
₹1,200
Pipe Sliding System (10×30 Pipe)
ASS-1000
Pipe Sliding System Full Set
Complete pipe sliding set with rollers, holders, stoppers, floor guide, 50 mm handle and 2 m track.
- Big Roller ×2
- Small Roller ×2
- Track to Glass Holder ×2
- Wall to Track Connector ×2
- Stopper ×2
- Floor Guide ×1
- Door Handle 50 mm ×1
- Sliding Track 2 m
₹12,500
List price per piece, excluding GST and freight.
Using ASS-1000
How and where it is used
The pipe sliding system uses a 10×30 mm stainless track with exposed rollers. It is a stylish, visible sliding system for glass doors.
How it is installed
- Fix the wall-to-track connectors and mount the 2 m track.
- Clamp the rollers to the top of the glass and hang the door on the track.
- Fit stoppers at both ends, the floor guide at the bottom, and the 50 mm handle.
Where it is used
- Shower sliding doors
- Wardrobe and closet glass doors
- Kitchen and pantry partitions
- Office cabins with limited swing space
Choosing tips
- Use ASS-1000/90 when the track turns a corner (L-shaped enclosures).

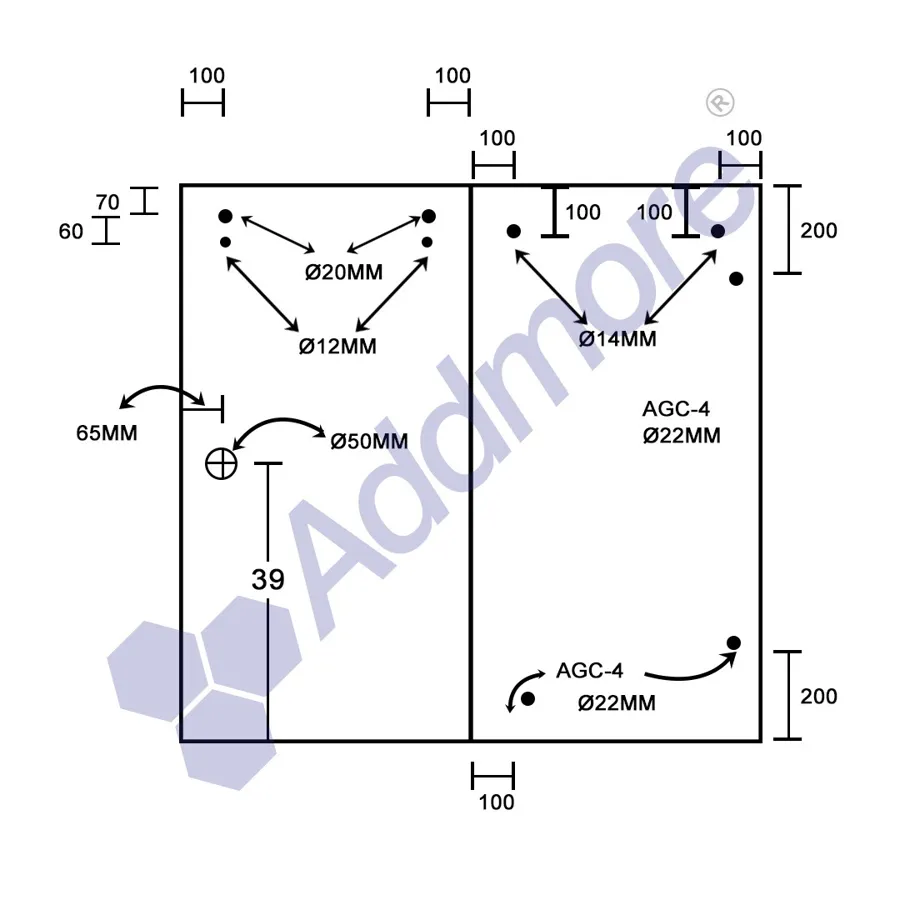

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
