ASL-01
Double Door Lock with Strike Box
Double door lock with strike box. Key on one side, knob on the other. No glass cut-out.
₹1,500
Glass Door Lock
ASL-03
Small Glass to Glass Lock
Compact glass-to-glass lock with knob, for cabins and toilets.
- Without cutout
- One side knob only
₹1,500
List price per piece, excluding GST and freight.
Using ASL-03
How and where it is used
Locks that clamp directly onto toughened glass, for swing and sliding doors. Most models need no cut-out in the glass.
How it is installed
- Mark the lock and strike position on the door and the fixed panel or wall.
- Clamp the lock body on the glass with its gaskets; fix the strike plate or strike box opposite.
- Check the bolt engages fully before tightening the covers.
Where it is used
- Office cabins and conference rooms
- Toilets and changing rooms (indicator locks)
- Shop doors and display counters
- Sliding glass doors
Choosing tips
- Strike plate = lock to a wall; strike box = lock to another glass door or panel.
- Indicator locks (ASL-05, ASL-06) show Open/Closed, ideal for washrooms.
- For sliding doors choose ASL-10 to ASL-40, or APSL-50 / APSL-60.

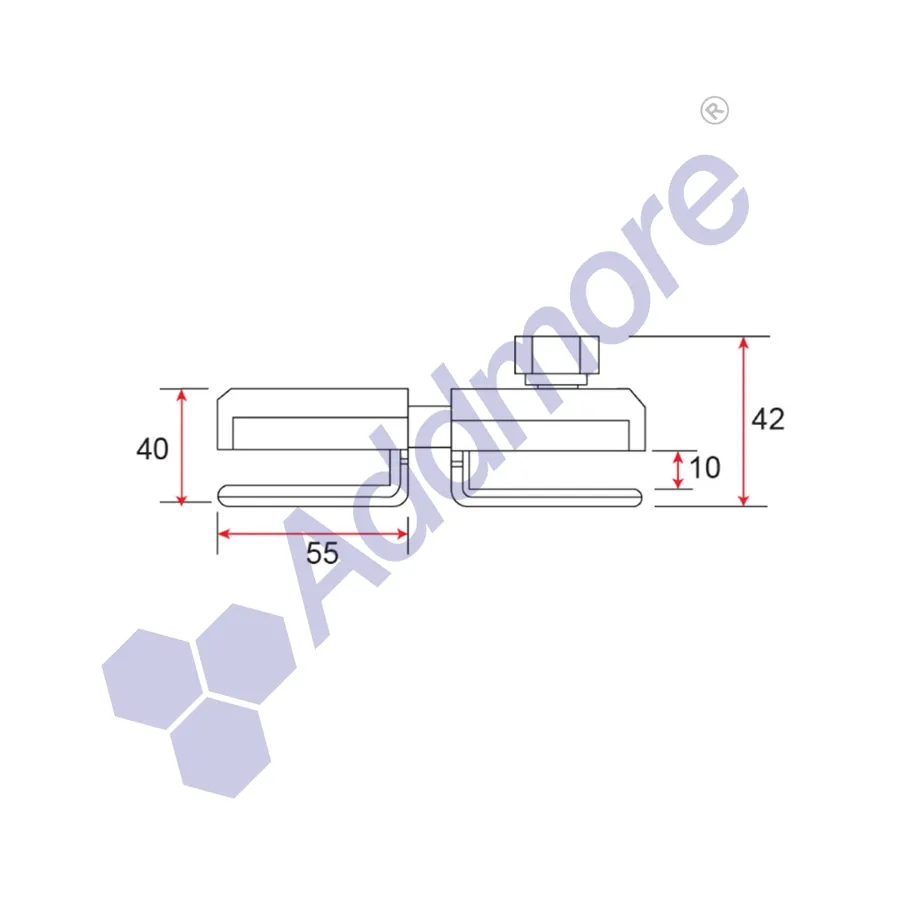

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
