Shower Hinges

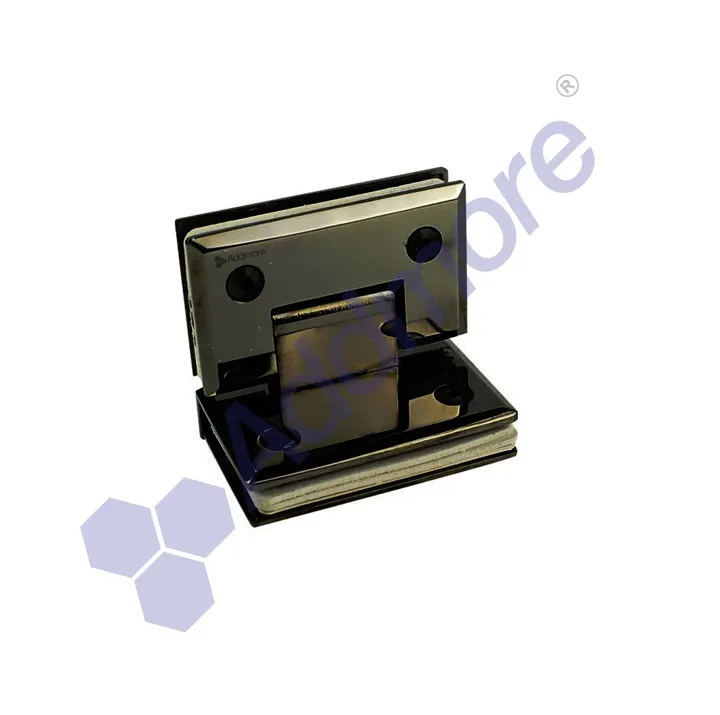

ASH-55
Glass to Glass 90° Hinge
Glass-to-glass hinge for a door hung off a fixed panel at a 90° corner.
- SS 304
₹3,400
List price per piece, excluding GST and freight.
Available in satin steel, Black, Rose Gold and Gold. Coloured finish price on request.
Using ASH-55
How and where it is used
Shower hinges carry a frameless glass shower door and let it swing. Addmore hinges are SS 304 with self-centering action, made for wet areas.
How it is installed
- Glass is notched and drilled to the hinge template before toughening.
- Wall-to-glass hinges are screwed to the tile wall with plugs; glass-to-glass hinges clamp to a fixed panel.
- Use two hinges per door (three for tall or heavy doors) and align them on one axis.
- Seal the bottom and the closing edge with PVC or magnetic seals.
Where it is used
- Bathroom shower enclosures
- Wet rooms and steam rooms
- Hotel and hospital bathrooms
- Gym and spa changing areas
Choosing tips
- Wall to glass 90° hinges (ASH-22, ASH-33) for doors hinged on a wall.
- Glass to glass hinges (ASH-44, 55, 66) when the door hangs off a fixed glass panel at 180°, 90° or 135°.
- ASH-77 T-type hinge handles two doors plus a fixed panel at one point.

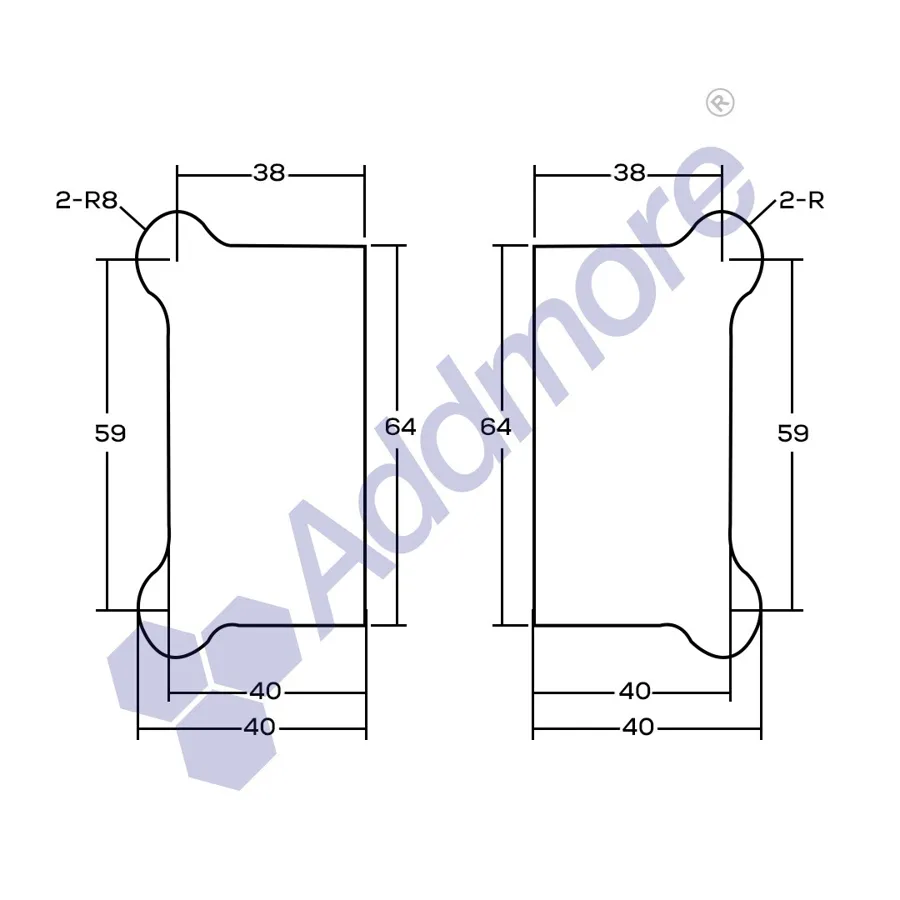

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
