Glass Connector
AGC-02
Glass to Glass 180° Connector
Joins two glass panels in a straight line (180°).
- SS 304
₹360
List price per piece, excluding GST and freight.
Available in satin steel, Black, Rose Gold and Gold. Coloured finish price on request.
Using AGC-02
How and where it is used
Glass connectors (also called glass clamps) join fixed glass panels to each other or to a wall at a set angle. They are the small square clamps you see on shower enclosures, glass partitions and display units.
How it is installed
- Drill one hole in the glass at the clamp position, as per the clamp template.
- Fix one side to the wall (U or L connectors) or clamp both glass panels (180°, 90°, 135°).
- Insert gaskets on both faces of the glass and tighten the cover screws.
Where it is used
- Shower enclosures and bathroom partitions
- Office glass partitions and corners
- Glass shelves, counters and display units
- Balcony and staircase glass panels
Choosing tips
- Choose the angle by layout: 180° for a straight run, 90° for corners, 135° for angled bays.
- U connector fixes a glass edge to a wall or floor; L connector holds the glass at a wall corner.
- Black, Rose Gold and Gold finishes match coloured shower fittings.

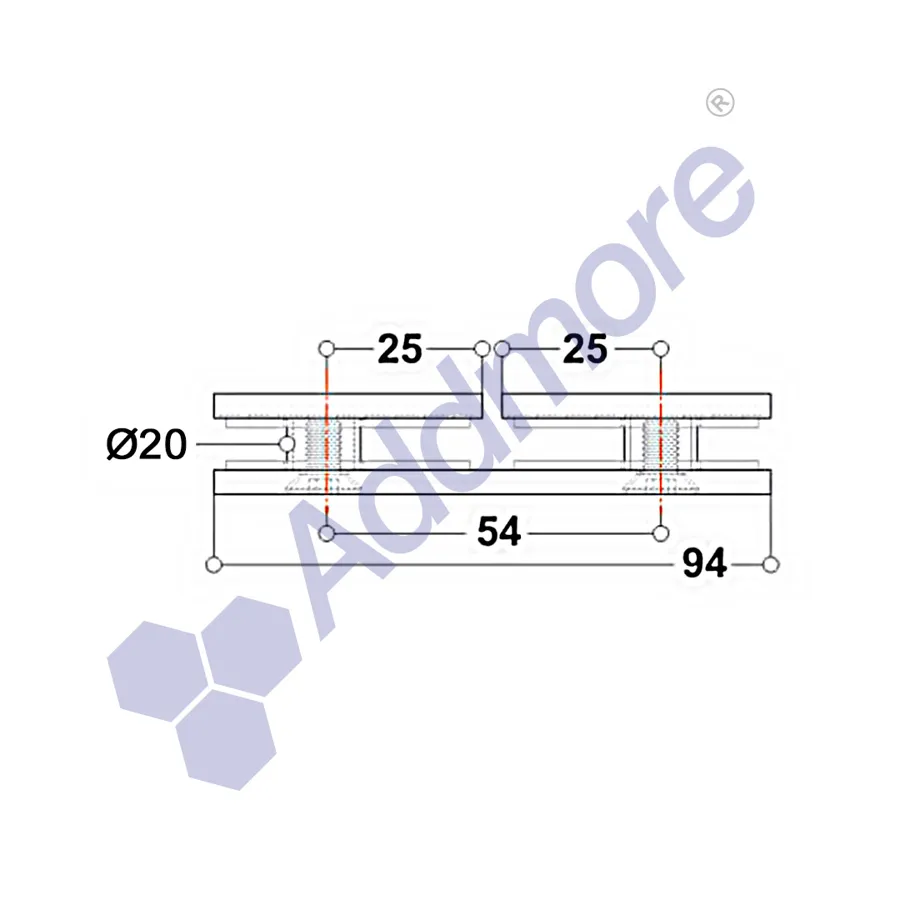

Technical drawing
Dimensions & glass preparation
Dimensions in mm. Confirm glass cut-outs with our team before toughening.
